Carlon 1-1/4" Figure 8 Aerial Duct
Carlon 1-1/4" Figure 8 Aerial Duct
SKU:AER-f1bed4
High-strength Carlon 1-1/4" Figure 8 Aerial Duct for secure aerial installations with UV protection and sequential markings.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
Carlon 1-1/4" Figure 8 Aerial Duct
$75.99
Quantity: 1
Claim Your Seller Account
Carlon 1-1/4" Figure 8 Aerial Duct
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

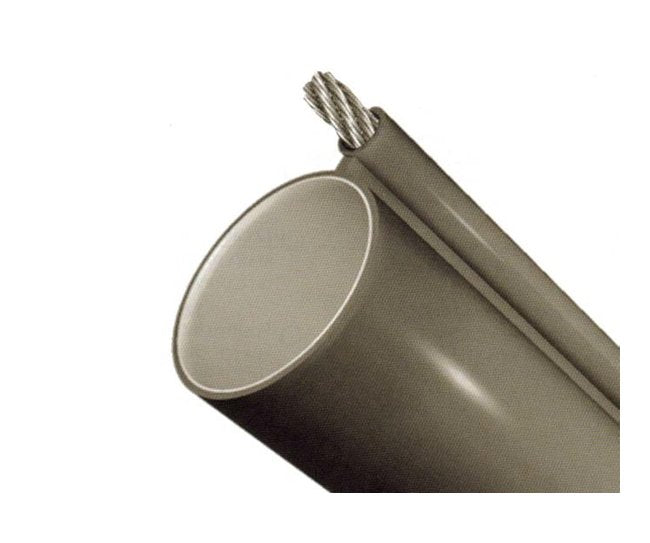

The Carlon 1-1/4" Figure 8 Aerial Duct offers exceptional strength and durability for aerial installations. Constructed with high-quality HDPE and a flooded galvanized support strand, this duct ensures secure and efficient placement. It features UV and thermal protection, sequential markings, and fits standard serpentine clamps, making it ideal for various applications such as aerial crossings, building installations, and protection against environmental elements. With breaking pull strength options to accommodate different needs, this duct provides reliability and ease of installation, even in challenging terrains.
Product Specifications
Applications
Aerial; highway or water crossings, building to building, added defense against rodent damage and gun shot pellets; easily maneuvered through heavily treed areas with one pass.
Specifications Breaking Pull Strength Lb
1/4 in. EHS galv. for 6650 | 3/8 in. EHS galv. for 15400 | 5/16 in. EHS galv. for 11200
Specifications Duct Size In
1-1/4
Specifications Duct Size Mm
32
Specifications Standard Shipping Lengths Ft
2500 | 5000
Specifications Type
SDR 13.5 for 1/4 in. Strand | SIDR 9 for 1/4 in. Strand | SIDR 9 for 3/8 in. Strand | SIDR 9 for 5/16 in. Strand
Specifications Span Lengths Ft
1/4 in. EHS galv. for 225 | 3/8 in. EHS galv. for 500 | 5/16 in. EHS galv. for 400
Specifications Span Lengths M
1/4 in. EHS galv. for 67 | 3/8 in. EHS galv. for 153 | 5/16 in. EHS galv. for 122
