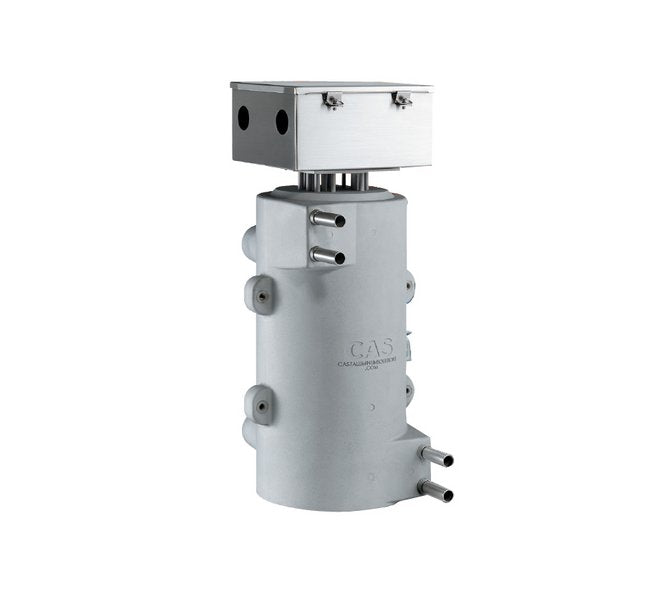

The CAS CAST-X 4000 Circulation Heater is a high-performance solution for industrial fluid heating needs. Featuring a robust cast-in aluminum construction, this heater ensures safe and efficient indirect heating, ideal for applications requiring fluid cleanliness. With dual-tube construction allowing fluid flow up to 18 GPM, it offers high-pressure operation up to 2500 psi, minimizing potential leakage. The 316L stainless steel seamless tubing facilitates compatibility with various process materials, making it a reliable choice for demanding environments. With options for NEMA 4 or ATEX-approved housing and output power ranging from 20 kW to 60 kW, the CAST-X 4000 provides exceptional performance and durability with low maintenance requirements.
Product Specifications
Additional Information 0
The compact size of the heater is made possible by our cast-in construction. By design, the heater elements are completely embedded in the aluminum. This heats the aluminum mass, creating a thermal flywheel which efficiently transfers heat to the heavy wall 316L stainless steel tubing which is also cast-in. The resulting product delivers maximum power and capacity in a small footprint.Since the material being heated in the tubing never comes into direct contact with the heating elements, the CAST-X 4000 is ideal for indirect heating applications where contamination and fluid cleanliness are important.The CAS design outlasts, and out performs a typical immersion heater. The Cast-X 4000 delivers superior performance and long life. With very low maintenance, downtime is minimal and overall cost of ownership is low.
Applications 0
Distillation of fuel oils.Oil and water separation.Fuel oil preheating for burners and boilers.Water and oil heating for foods and beverages.Steam generation and superheating.Glycol and oil heating for heat transfer systems.Deionized water heating for sterilization.Air, CO2 and nitrogen heating.Fuel and Oil heating for test stands.
Features And Benefits 0
Robust cast-in aluminum constructionEnsures an intrinsically safe thermal solution.Heats sensitive materials safely with indirect heating.Low MaintenanceElements never need to be replaced.Dual-tube constructionFluid (water) flow up to 18 GPM for single tube flow.Can reduce pressure drop by running tubes in parallel.Fluid path independent of heater sheathAllows sensitive materials to be heated safely.Prevents fluid contamination.316L stainless steel seamless tube for fluid pathCompatible with a wide range of process materials.High-pressure operation up to 2500 psi.Non-welded constructionOffers economical package price.Minimizes potential leakage.Self-draining
Non Standard Options 0
Passivated or electropolished wetted surfaces.Custom fittings and sensors.

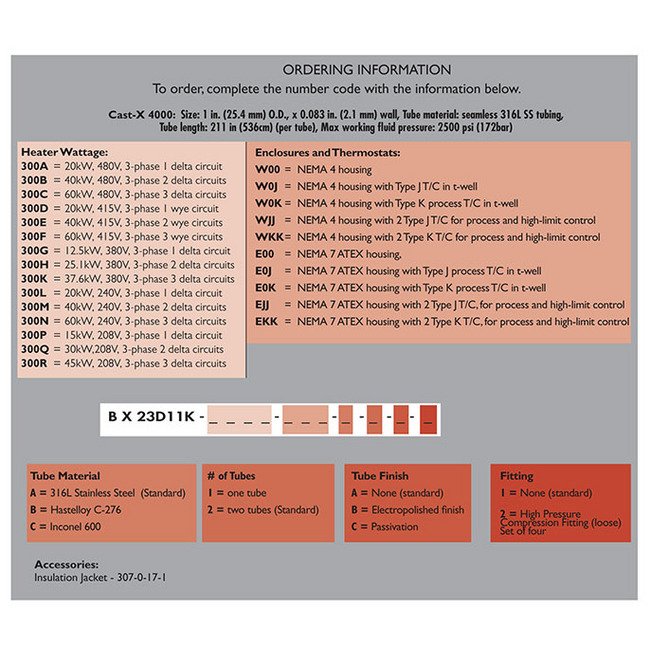

Specifications Accessories
Insulation jacket - 307-0-17-1
Specifications Enclosures And Thermostats
NEMA 4 housing | NEMA 4 housing with 2 Type J T/C for process and high-limit control | NEMA 4 housing with 2 Type K T/C for process and high-limit control | NEMA 4 housing with Type J T/C in t-well | NEMA 4 housing with Type K process T/C in t-well | NEMA 7 ATEX housing | NEMA 7 ATEX housing with 2 Type J T/C, for process and high-limit control | NEMA 7 ATEX housing with 2 Type K T/C, for process and high-limit control | NEMA 7 ATEX housing with Type J process T/C in t-well | NEMA 7 ATEX housing with Type K process T/C in t-well
Specifications Fitting
High Pressure Compression Fitting (loose) Set of four | None (Standard)
Specifications Fluid Water Flow Rate
18 gpm
Specifications Heater Voltage
208 V | 240 V | 380 V | 415 V | 480 V
Specifications Heater Wattage
12.5 kW at 380 V and 3-phase (1 delta circuit) | 15 kW at 208 V and 3-phase (1 delta circuit) | 20 kW at 240 V and 3-phase (1 delta circuit) | 20 kW at 415 V and 3-phase (1 wye circuit) | 20 kW at 480 V and 3-phase (1 delta circuit) | 25.1 kW at 380 V and 3-phase (2 delta circuits) | 30 kW at 208 V and 3-phase (2 delta circuits) | 37.6 kW at 380 V and 3-phase (3 delta circuits) | 40 kW at 240 V and 3-phase (2 delta circuits) | 40 kW at 415 V and 3-phase (2 wye circuits) | 40 kW at 480 V and 3-phase (2 delta circuits) | 45 kW at 208 V and 3-phase (3 delta circuits) | 60 kW at 240 V and 3-phase (3 delta circuits) | 60 kW at 415 V and 3-phase (3 wye circuits) | 60 kW at 480 V and 3-phase (3 delta circuits)
Specifications Maximum Power
Up to 60000 W
Specifications Maximum Process Temperature
0 to 500 ºF | 0 to 260 ºC
Specifications Maximum Working Fluid Pressure
2500 psi | 172 bar
Specifications Maximum Working Temperature
250 ºF (121 ºC) - ATEX | 250 ºF (121 ºC) - NEMA 7 | 500 ºF (260 ºC) - NEMA 4

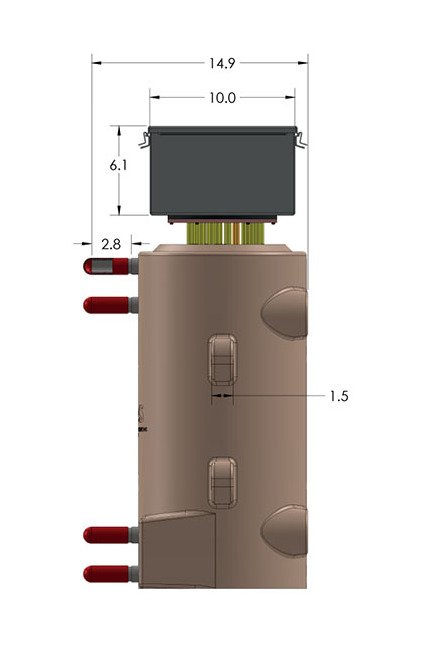

Specifications Outer Diameter
1 in | 25.4 mm
Specifications Output Power
20 to 60 kW
Specifications Phase
Three
Specifications Terminal Housing
ATEX | NEMA 4 | NEMA 7
Specifications Tubing Material
316L Stainless Steel (Standard) | Hastelloy C-276 | Inconel 600
Specifications Tubing Wall Thickness
0.083 in | 2.1 mm
Specifications Weight Atex
305 lb | 138 kg
Specifications Weight Nema 4
279 lb | 127 kg
Standard Options 0
3-phase electrical operation with 208, 240, 380, 415 and 480 Volt configurations.Output power 20 kW to 60 kW.NEMA 4 terminal enclosure/housing.ATEX approved explosion proof terminal enclosure/ housing.
Tube Specifications Number Of Tubes
One Tube | Two Tubes (Standard)
Tube Specifications Process Tube Length Per Tube
211 in | 536 cm
Tube Specifications Tube Finish
Electropolished Finish | None (Standard) | Passivation
