Cast Iron Ball Valve Class 125 - Flat Face Flanged Ends
Cast Iron Ball Valve Class 125 - Flat Face Flanged Ends
SKU:VAL-5fd9c4
High-performance Cast Iron Ball Valve Class 125 with blowout proof stem & flat face flanged ends for industrial use.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Cast Iron Ball Valve Class 125 - Flat Face Flanged Ends
$189.99
Quantity: 1
Claim Your Seller Account
Cast Iron Ball Valve Class 125 - Flat Face Flanged Ends
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cast Iron Ball Valve Class 125 is a robust valve designed for industrial applications requiring reliable performance. With a pressure rating of 125 PSI for saturated steam up to 353°F and 200 PSI for non-shock cold water, oil, or gas, this valve ensures durability and safety. Featuring a blowout proof stem, stainless steel trim, and PTFE seats and seals, it meets Class 125 WSP/200 WOG standards with flat face flanged ends. Conforming to MSS SP-72, ASME B16.1, and ASME B16.10, this valve provides full port functionality for seamless flow control.
Product Specifications

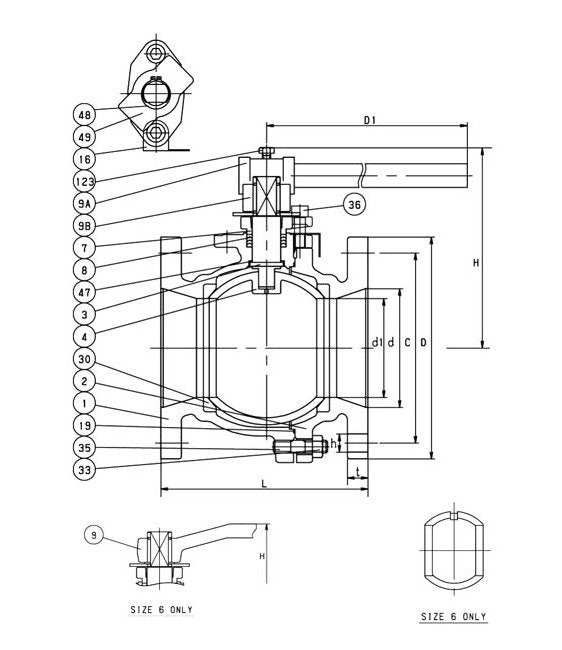

Material List 0
No. Name of Part Specification 1 Body Cast Iron (A126 Cl. B) 2 Body Caps Cast Iron (A126 Cl. B) 3 Stem Stainless Steel (A276 Type 304) 4 Ball Stainless Steel (A276, Type 304 or A351 Gr. CF8) 7 Gland Ductile Iron 8 Gland Packing (1 Set) Ptfe 9 Handle Ductile Iron 9A Handle Bar Carbon Steel (6"-10") 9B Handle Head Ductile Iron (6"-10") 16A Name Plate Aluminum 16B Washer Carbon Steel 19 Gasket PTFE 30 Ball Seats PTFE 33 Cap Nut (1 Set) Carbon Steel 35 Cap Bolt (1 Set) Carbon Steel 36 Gland Bolt (1 Set) Carbon Steel 47 Thrust Washer G/F + PTFE 48 Snap Ring Carbon Steel 49 Stopper Stainless Steel 123 Handle Bolt Carbon Steel (6"-10")
Specifications Approx Net Wt
262.00
Specifications Bolt No
12
Specifications Bolt Size
7/8 inches
Specifications Carton Qty
1
Specifications Class
FCTR
Specifications Dimension D
7.87
Specifications Dimension D1
59.06
Specifications Dimension D2
10 inches
Specifications Dimension H
13.39
Specifications Dimension L
12.99
Specifications End Size
Flat Face Flanged
Specifications Material
Cast Iron
Specifications Port
Standard
Specifications Pressuretemperature
125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have Class 125 WSP/200 WOG cast iron body, CF8 stainless steel trim, blowout proof stem, PTFE seats and seals with flat face flanged ends and conforming to MSS SP-72, ASME B16.1, ASME B16.10.KITZ Code # 90 (125FCTB) Full PortKITZ Code # 91 (125FCTR) Standard Port
Standard 0
End to End ASME B16.10 Class 125/150 End Connection ASME B16.1 Class 125 Wall Thickness KITZ Conforms to MSS SP72
