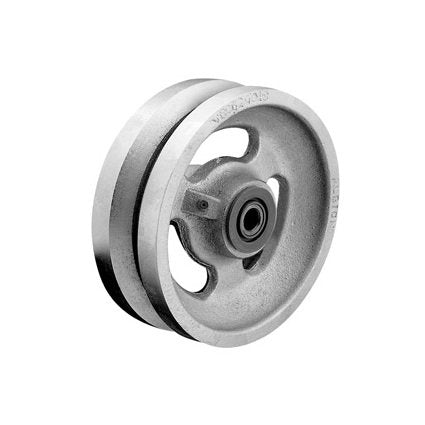

Cast Iron V-Groove Wheels

Cast Iron V-Groove Wheels

SKU:WHE-b3c343

Heavy-duty Cast Iron V-Groove Wheels for precision tracking and load equalization. Ideal for varied applications.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Cast Iron V-Groove Wheels

Cast Iron V-Groove Wheels

$34.99

Quantity: 1

Claim Your Seller Account

Cast Iron V-Groove Wheels

Cast Iron V-Groove Wheels

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your material handling operations with our Cast Iron V-Groove Wheels. Crafted from heavy-duty cast iron, these wheels are meticulously machined for optimal performance on angled tracks and flat surfaces. The relief groove at the base of the V ensures a balanced load distribution, while the concentric wheel face and bore guarantee smooth tracking. With a load rating of 800 lbs and a temperature range of -40 to +800 degrees Fahrenheit, these wheels offer durability and reliability in diverse environments. Ideal for applications that demand precision and stability, the VL variant features a larger bore for increased capacity. Track alignment is key to unlocking the full potential of these versatile wheels.

Product Specifications

Specifications Bearing Id In
5/8
Specifications Bore Id In
1-3/16
Specifications Hub Length In
2-3/16
Specifications Load Rating Lbs
800
Specifications Load Rating Range Lbs
800-899
Specifications Temperature Range
-40 to +800
Specifications Tread Width In
2
Specifications Weight
4
Specifications Wheel Bearing Type
Roller
Specifications Wheel Description
Metal, Cast Iron
Specifications Wheel Diameter In
4.00
Specifications Wheel Finish
Silver
