Cast Steel Storm Angle Pattern Valve - DIN PN10
Cast Steel Storm Angle Pattern Valve - DIN PN10
SKU:VAL-612a90
Durable Cast Steel Storm Valve with Bronze Disc & Brass Stem, DIN2501-PN10 Standard. Ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Cast Steel Storm Angle Pattern Valve - DIN PN10
$899.99
Quantity: 1
Claim Your Seller Account
Cast Steel Storm Angle Pattern Valve - DIN PN10
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

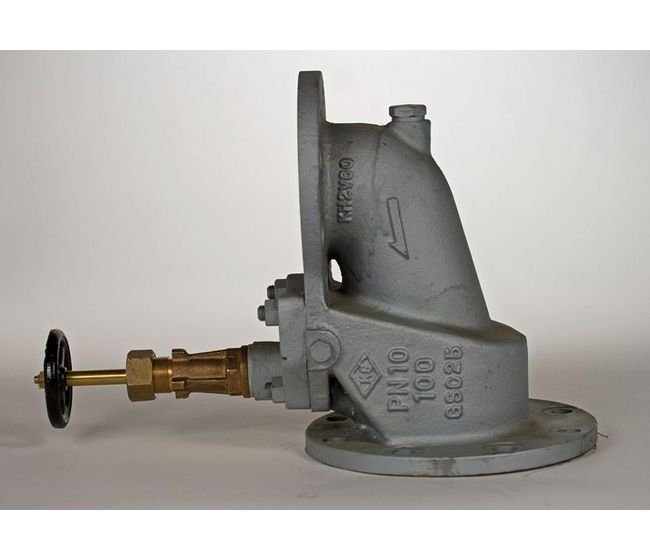

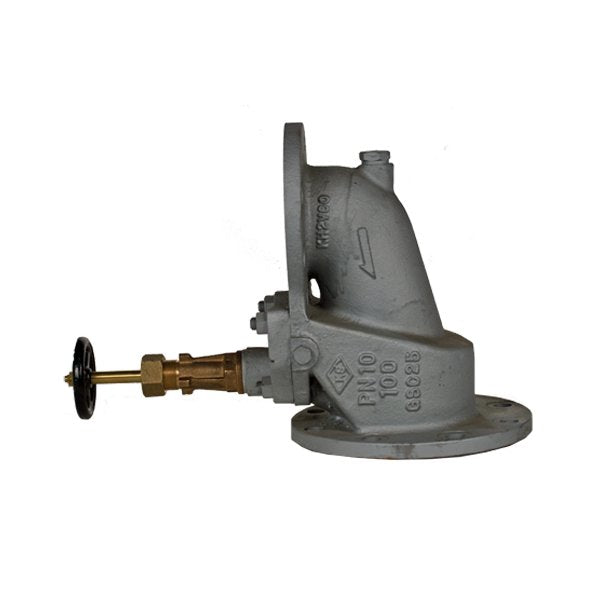

The PN 10 Cast Steel Storm Angle Pattern Valve is a robust solution for industrial applications, featuring a Cast Steel body, Bronze disc, and Brass stem for durability and reliability. With Flanges according to DIN2501-PN10 standards, this valve ensures secure connections and efficient operation. The Valve is designed for a Size of 150 with Hydraulic Inspection ratings that meet institutional standards, making it ideal for heavy-duty usage in various settings.

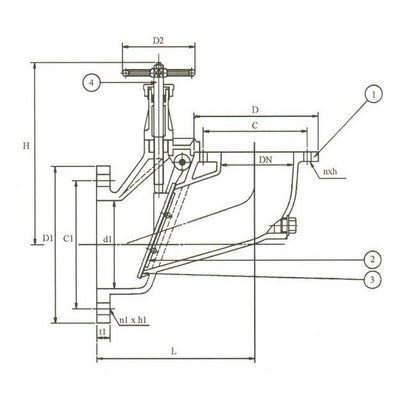

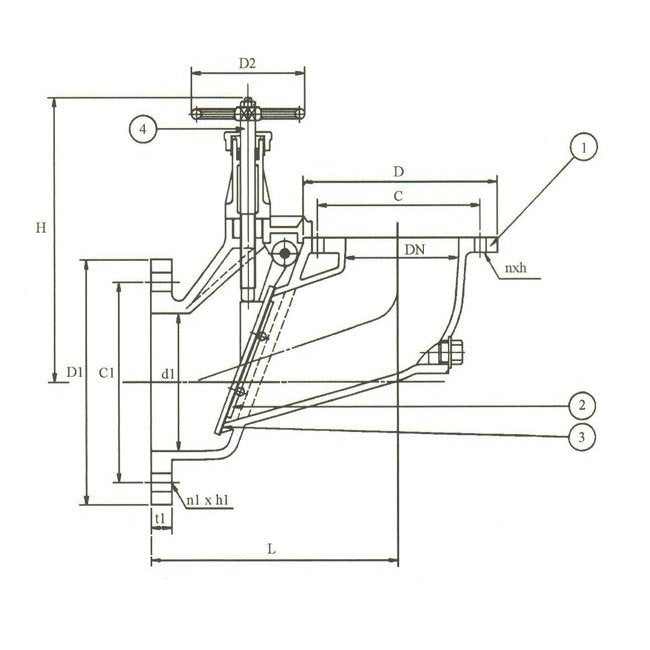

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
240 mm
Specifications C1
295 mm
Specifications Connection
Flanged Drilled
Specifications D
285 mm
Specifications D1
340 mm
Specifications D2
125 mm
Specifications Disc Material
Bronze
Specifications H
316 mm
Specifications H1
22 mm
Specifications Hydraulic Inspection Body
5.1
Specifications Hydraulic Inspection Seat
2.0
Specifications Impaissa Code
754290 | 754296
Specifications L
330 mm
Specifications N1 Number Of Holes
8
Specifications N Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
150
Specifications Stem Material
Brass
Specifications T
22 mm
Specifications T1
24 mm
Specifications Weight
480 kg
