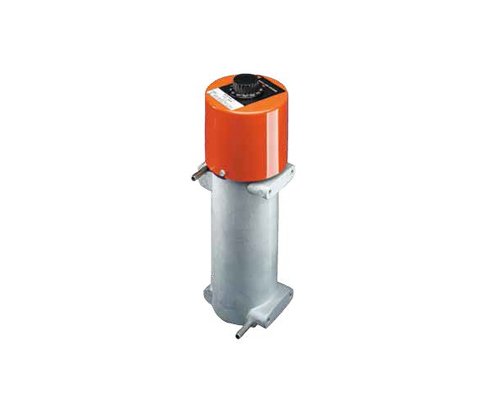

The CAST-X 1000 Circulation Heater from CAST-X Series is an innovative solution for heating volatile, viscous, or mildly corrosive materials. Featuring a robust cast construction with an aluminum body, this heater ensures precise and consistent heat transfer up to 250 ºF. Its unique design effectively conducts heat away from tubular elements, prolonging operational life. With a maximum working fluid pressure of 2100 psi, it allows for economic high-pressure operation, making it an ideal choice for industrial applications requiring safe and efficient heating.
Product Specifications
Additional Information 0
The CAST-X 1000 circulation heater from Cast Aluminum Solutions consists of a helically coiled tube cast into an aluminum body with tubular elements. The aluminum body blankets the tubular elements and acts as the heat transfer media between the elements and the coiled tube circulating the heated fluid. This innovative and cost-effective cast construction provides multiple advantages compared to traditional circulation heaters. The CAST-X 1000 circulation heater's aluminum mass maintains heat accurately and consistently, resulting in an optimum level of temperature control. The aluminum body also efficiently conducts heat away from the tubular elements, prolonging heater life. The reliable construction of the CAST-X 1000 circulation heater allows fluid to circulate through a coiled tube instead of in direct contact with tubular elements. This feature eliminates hot spots that typically result from contact between tubular elements and the heated fluid. The robust, rugged design of the CAST-X 1000 circulation heater delivers problem-free operation in a more compact size than traditional heat exchangers. The CAST-X 1000 circulation heater is appropriate for numerous applications and may be customized to meet specific customer needs.Optional insulated body, process thermocouples and snap action high-limit thermostats.
Applications 0
Solvent heating.Glycol heating for heat transfer systems.Analytical instrumentation.Steam generation.Paint heating.Food and beverage heating.General industrial applications.
Features And Benefits 0
Fluid path constructed independent from heater sheathAllows sensitive materials to be heated safely and effectively.Ensures safety because heater failure will not cause leaks or significant damage.Provides cost effective material compatibility due to minimal material usage and non-welded construction.Operates to 2100 psi with appropriate fittingsAllows economic, high pressure operation Integrated thermostat and enclosure.Integrated thermostat and enclosurePermits ease of installation and use.Eliminates additional parts and wiring.Over-temperature snap action switchOffers cost effective, over-temperature protection.Self-draining constructionSaves time and money.Reduces material degradation caused by trapped material.
Non Standard Options 0
NEMA 7 enclosures.Passivated or electropolished wetted surfaces.Custom fittings and sensor.

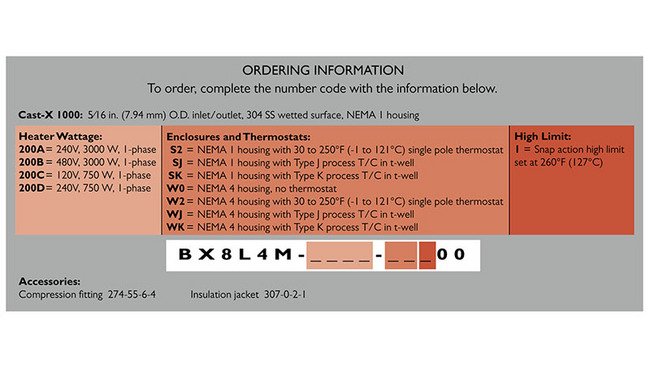

Specifications Accessories
Compression fitting - 274-55-6-4 | Insulation jacket - 307-0-2-1

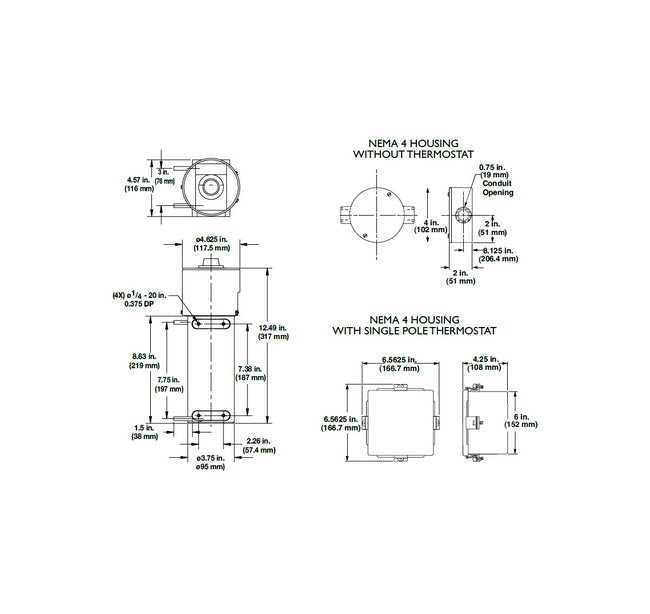

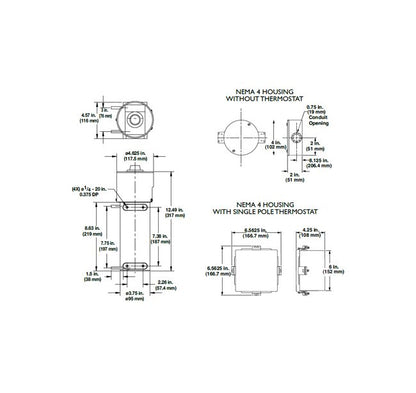

Specifications Deep Mounting Hole Size
1/4-20 | 3/8 in | 10 mm
Specifications Enclosures And Thermostats
NEMA 1 housing with 30 to 250 ºF (-1 to 121 ºC) single-pole thermostat | NEMA 1 housing with Type J process T/C in t-well | NEMA 1 housing with Type K process T/C in t-well | NEMA 4 housing with 30 to 250 ºF (-1 to 121 ºC) single-pole thermostat | NEMA 4 housing with Type J process T/C in t-well | NEMA 4 housing with Type K process T/C in t-well | NEMA 4 housing, no thermostat
Specifications Enclosure Material
NEMA 1 Sheet Metal Enclosure
Specifications Heater Wattage
750 W at 120 V and 1-phase | 750 W at 240 V and 1-phase | 3000 W at 240 V and 1-phase | 3000 W at 480 V and 1-phase
Specifications High Limit
Snap action high limit set at 260 ºF (127 ºC)
Specifications Industry Focus
Food
Specifications Maximum Power
Up to 3000 W
Specifications Maximum Process Temperature
0 to 500 ºF | 0 to 260 ºC
Specifications Maximum Voltage
120 V | 240 V | 480 V
Specifications Maximum Working Fluid Pressure
2100 psi | 145 bar
Specifications Number Of Deep Mounting Hole
4
Specifications Outer Diameter Inletoutlet
5/16 in | 7.94 mm
Specifications Phase
Single
Specifications Terminal Housing
NEMA 1 | NEMA 4 | NEMA 7
Specifications Tubing Material
316 Stainless Steel
Specifications Wetted Surface Material
304 Stainless Steel | 316 Stainless Steel
