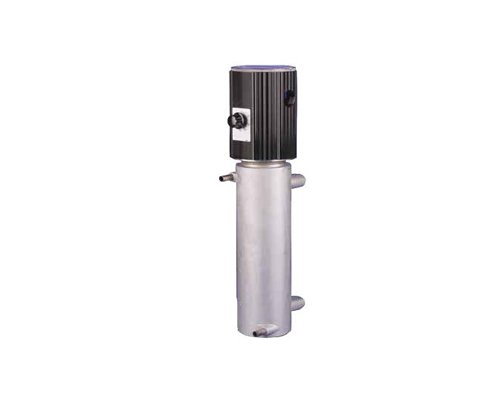

CAST-X 2000 Circulation Heater with Aluminum Body
CAST-X 2000 Circulation Heater with Aluminum Body
SKU:CAS-bf4055
Efficiently heat fluids in demanding applications with the CAST-X 2000 Circulation Heater.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CAST-X 2000 Circulation Heater with Aluminum Body
$899.99
Quantity: 1
Claim Your Seller Account
CAST-X 2000 Circulation Heater with Aluminum Body
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CAST-X 2000 Circulation Heater is engineered for applications demanding fluid cleanliness, precise temperature control, and high pressure requirements. Featuring a robust aluminum body with a helical coiled tube and tubular elements, this heater ensures efficient heat transfer while preventing fluid contamination. With a maximum working pressure of 4300 psi and compatibility with various materials, including thermally sensitive substances, the CAST-X 2000 excels in critical industries such as food service, semiconductor, and analytical markets. It comes with integrated thermostat options, explosion-proof enclosures, and non-standard configurations for specialized needs.
Product Specifications
Additional Information 0
The unique construction of the heater allows it to be used where thermally sensitive materials are being heated such as paints, resins and flammable materials such as fuels and solvents. The aluminum mass acts as a "thermal flywheel" and ensures accurate temperature control of the fluid to prevent degradation. The CAST-X 2000 is available with optional explosion proof enclosure for use in flammable environments. The CAST-X 2000 is well suited to applications where fluid cleanliness is critical because the material being heated never comes in contact with the heating elements. This is a performance requirement in many food service equipment, semiconductor and analytical markets. The CAST-X 2000 heater comes with a heavy wall seamless stainless steel passageway that assures performance in high-pressure applications up to 4300 psi where viscous or mildly corrosive materials need to be heated.
Applications 0
Solvent heating.Diesel and jet fuel heating.Glycol heating for heat transfer systems.Sample heating-analytical instrumentation.Steam generation.Food and beverage heating-pasteurization.Paint heating.Two part urethane and foam system heating.Air, CO2 and nitrogen heating.Deionized (DI) water heating.
Features And Benefits 0
Fluid path constructed independent from heater sheathAllows sensitive materials to be heated safely.Prevents fluid contamination.Robust cast-in aluminum constructionAssures longer heater life.Provides accurate temperature control.Integrated thermostat and enclosureAssures easy use and installation.Allows heater to run dry.Provides protection in explosive environments.Standard 316L stainless steel fluid pathEnsures material compatibility with many different materials.Non-welded constructionOffers economical package price.Minimizes potential leakage.Allows high pressure operation up to 4300 psi with appropriate fittings.Ensures self-draining when mounted vertically.
Non Standard Options 0
ATEX explosion-proof enclosures.Passivated or electropolished wetted surfaces.Custom fittings.Custom sensors.Stand-off housing.
Specifications Accessories
High pressure compression fitting - 274-55-6-5 | Insulation jacket - 307-0-11-1

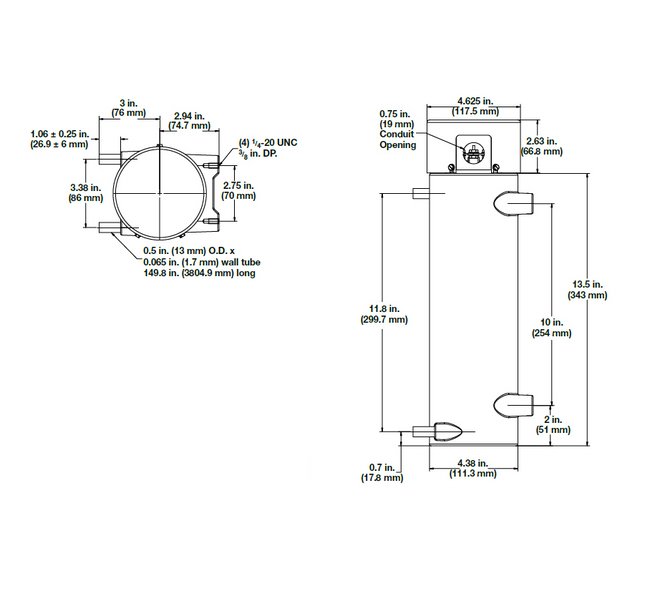

Specifications Deep Mounting Hole Size
1/4-20 | 1/2 in | 13 mm
Specifications Enclosures And Thermostats

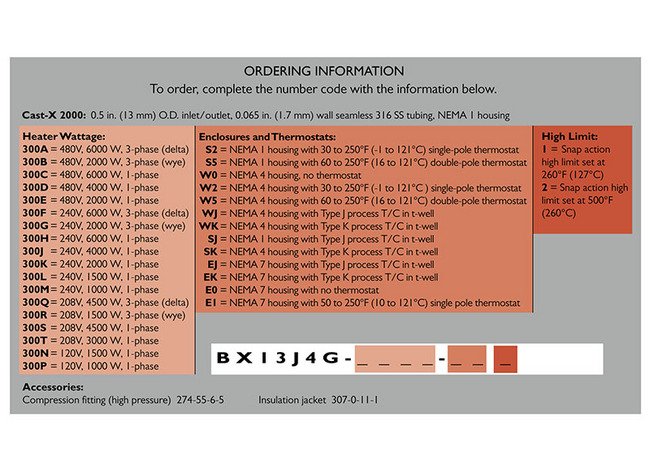

NEMA 1 housing with 30 to 250 ºF (-1 to 121 ºC) single-pole thermostat | NEMA 1 housing with 60 to 250 ºF (16 to 121 ºC) double-pole thermostat | NEMA 1 housing with Type J process T/C in t-well | NEMA 4 housing with 30 to 250 ºF (-1 to 121 ºC) single-pole thermostat | NEMA 4 housing with 60 to 250 ºF (16 to 121 ºC) double-pole thermostat | NEMA 4 housing with Type J process T/C in t-well | NEMA 4 housing with Type K process T/C in t-well | NEMA 4 housing, no thermostat | NEMA 7 housing with 50 to 250 ºF (10 to 121 ºC) single-pole thermostat | NEMA 7 housing with no thermostat | NEMA 7 housing with Type J process T/C in t-well | NEMA 7 housing with Type K process T/C in t-well
Specifications Enclosure Material
NEMA 1 Metal Enclosure
Specifications Heater Voltage
120 V | 208 V | 240 V | 480 V
Specifications Heater Wattage
1000 W at 120 V and 1-phase | 1000 W at 240 V and 1-phase | 1500 W at 120 V and 1-phase | 1500 W at 208 V and 3-phase (wye) | 1500 W at 240 V and 1-phase | 2000 W at 240 V and 1-phase | 2000 W at 240 V and 3-phase (wye) | 2000 W at 480 V and 1-phase | 2000 W at 480 V and 3-phase (wye) | 3000 W at 208 V and 1-phase | 4000 W at 240 V and 1-phase | 4000 W at 480 V and 1-phase | 4500 W at 208 V and 1-phase | 4500 W at 208 V and 3-phase (delta) | 6000 W at 240 V and 1-phase | 6000 W at 240 V and 3-phase (delta) | 6000 W at 480 V and 1-phase | 6000 W at 480 V and 3-phase (delta)
Specifications High Limit
Snap action high limit set at 260 ºF (127 ºC) | Snap action high limit set at 500 ºF (260 ºC)
Specifications Industry Focus
Food
Specifications Maximum Power
Up to 6000 W
Specifications Maximum Process Temperature
0 to 500 ºF | 0 to 260 ºC
Specifications Maximum Working Fluid Pressure
4300 psi | 297 bar
Specifications Maximum Working Temperature
250 ºF - NEMA 7 | 350 ºF - NEMA 1 | 350 ºF - NEMA 4 | 500 ºF - NEMA 4 with Stand-Off
Specifications Maximum Working Temperature With Stand Off Housin
500 ºF | 260 ºC
Specifications Number Of Deep Mounting Hole
4
Specifications Phase
Single | Three
Specifications Process Tube Length
150 in | 3.81 m
Specifications Terminal Housing
NEMA 1 | NEMA 4 | NEMA 7
Specifications Tubing Diameter
1/2 in | 12.7 mm
Specifications Tubing Material
316 Stainless Steel
Specifications Tubing Wall Thickness
0.065 in | 1.65 mm
Specifications Wetted Surface Material
316 Stainless Steel
Standard Options 0
NEMA 1, 4 and 7 enclosures with and without process thermostats.Snap action high-limit thermostat.Insulated body.Process and high-limit thermocouples.
