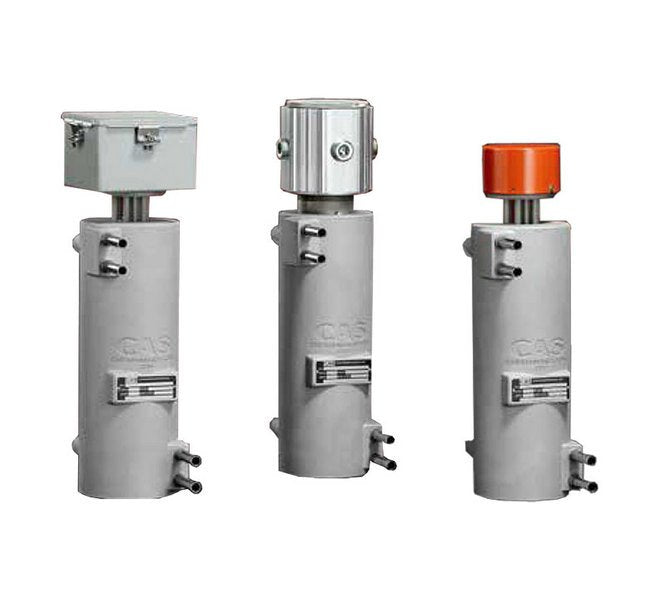

The CAST-X 2500 Industrial Circulation Heater from Cast Aluminum Solutions (CAS) is a powerful mid-sized heater featuring two helical-coiled flowpath tubes and low watt density heating elements cast into an aluminum body. With a compact design and robust construction, this heater offers a wide range of applications, including paint and solvent heating, industrial gas heating, and more. Its unique design ensures safe heating of sensitive materials and compatibility with high-pressure systems, making it ideal for industrial settings. Additionally, the option for NEMA and ATEX certified electrical enclosures enhances safety and compliance in various environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
The media being heated never contacts the heating elements, which is a distinct advantage of the CAST-X line: it is often used to heat flammable and hazardous liquids and gases. Another advantage is the small footprint / high output ratio. The CAST-X 2500 is available with a variety of NEMA and ATEX certified electrical enclosures; and may be ordered in a wide range of volt, watt and circuitry configurations.
Applications 0
Paint and Solvent HeatingGlycol and Heat-Transfer System UseFood and Beverage PasteurizationIndustrial Gas Heating and Air SeparationSteam GenerationLaboratory and Analytical ApplicationsUrethane / Foam System Heating
Features And Benefits 0
SS 316L Fluid Path Separate from Heating Elements (allows safe heating of sensitive materials and prevents contamination)Very Compact Design: Replaces Much Larger HeatersSelf-Draining, Low-Maintenance DesignDual Tubes Can Be Run In-Series or ParallelRobust Cast-In Construction (for long heater life)Non-Welded Design (minimizes potential leakage)Wide Application Compatibility (including high pressure)
Options 0
Compression Fittings
Specifications Electrical Enclosure Features
Explosion Proof | General Purpose/Dust Proof | Moisture Resistant
Specifications Finish Optional Upgrade
Electro-Polished | Passivated
Specifications Insulating Jacket Rated Temperature
800 ºF | 425 ºC
Specifications Maximum Casting Temperature
662 ºF | 350 ºC
Specifications Maximum Line Current
30 A
Specifications Maximum Pressure
4000 psi | 275 bar
Specifications Overall Process Tube Length
130 in | 3302 mm
Specifications Power
2.5 to 15 kW

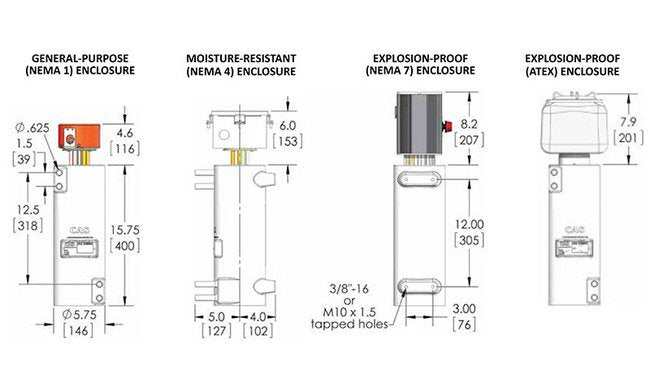

Specifications Terminal Housing
ATEX | NEMA 1 | NEMA 4 | NEMA 7
Specifications Tubing Material
316L Stainless Steel (Standard) | Inconel (Optional Upgrade)
Specifications Tubing Outer Diameter
0.625 in | 15.9 mm
Specifications Tubing Wall Thickness
0.065 in | 1.7 mm
Specifications Type Of Sensors
K or J Type Thermocouples Standard | Process and High-Limit Thermocouples | Snap-Action High-Limit Thermostat
Specifications Voltage Range
208 to 480 V
