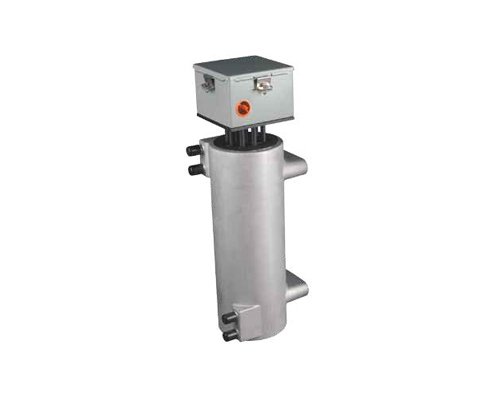

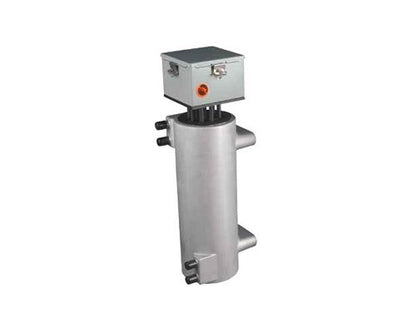

CAST-X 3000 Circulation Heater with Dual-Tube Construction
CAST-X 3000 Circulation Heater with Dual-Tube Construction
SKU:CAS-35d40d
Enhance operations with the CAST-X 3000 Circulation Heater - efficient, reliable, and perfect for critical heating needs.
Regular price
$1,949.99
Regular price
Sale price
$1,949.99
Unit price
per
Initiate Order
CAST-X 3000 Circulation Heater with Dual-Tube Construction
$1,949.99
Quantity: 1
Claim Your Seller Account
CAST-X 3000 Circulation Heater with Dual-Tube Construction
$1,949.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CAST-X 3000 Circulation Heater is a pinnacle of efficiency and reliability, crafted for applications where indirect heating and fluid cleanliness are paramount. With a robust cast-in aluminum construction and seamless 316L stainless steel fluid path, this heater ensures high pressure operation up to 2500 psi while preventing fluid contamination. Its dual-tube design allows for precise temperature control and compatibility with various materials. Integrated thermostat and housing make installation effortless, providing protection in explosion-prone environments. Ideal for food, semiconductor, and industrial applications requiring rapid, reliable heat transfer.
Product Specifications
Additional Information 0
The compact size of the heater is due to the construction which allows long heater life due to the elements being in contact with aluminum and reduces the foot print required by traditional heat exchangers. Also, the use of heavy wall 316L stainless steel tubing assures high reliability and high pressure operation. The CAST-X 3000 is well suited to applications where indirect heating and fluid cleanliness are important. This is because the material being heated never comes in contact with the heating source. This is a critical performance requirement in many industries such as semiconductor, and food and beverage. The CAST-X 3000 is configured and designed for rapid delivery. Because the lower level cast parts are in stock the typical delivery is 5-7 days on quantities less than 10 pieces. This is ideal for applications where lead time is critical.
Applications 0
Water and oil heating for food and beverage.Steam generation and superheating for process applications.Glycol and oil heating for heat transfer systems.Deionized water heating for sterilization in food and beverage.Air, CO2 and nitrogen heating.Fuel and oil heating for test stands.
Features And Benefits 0
Dual-tube constructionEnsures water flow to 20 GPM when run in parallel.Maintains accurate temperature control quicker when running one coil to heat and one to cool.Fluid path independent of heater sheathAllows sensitive materials to be heated safely.Prevents fluid contamination.Robust cast-in aluminum constructionAssures longer heater life.Provides accurate temperature control.Integrated thermostat and housingPermits ease of installation and use.Allows heater to run dry.Provides protection in an explosion environment.Seamless 316L stainless steel fluid pathAllows compatibility with different materials.Safety allows high-pressure operation up to 2500 psi.Non-welded constructionOffers economical package price.Minimizes potential leakage.Ensures self-draining when mounted vertically.
Non Standard Options 0
Passivated or electropolished wetted surfaces.Custom fittings and sensors.
Specifications Accessories
High pressure compression fitting - 274-55-6-7

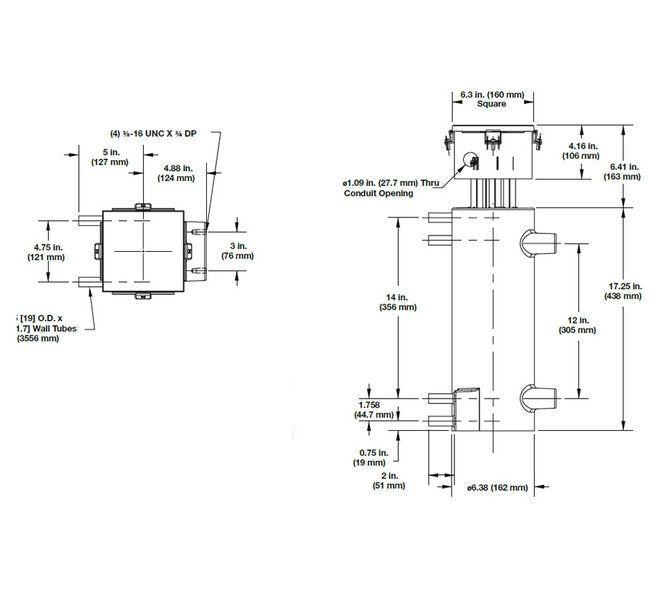

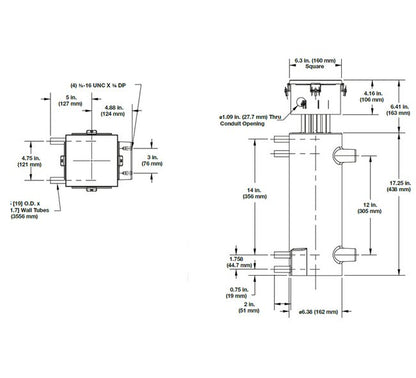

Specifications Deep Mounting Hole Size
3/8-16 UNC | 3/4 in | 19 mm
Specifications Enclosures And Thermostats
NEMA 4 housing with Type J T/C for process and high-limit control | NEMA 4 housing with Type J T/C in t-well | NEMA 4 housing with Type K process T/C in t-well | NEMA 4 housing with Type K T/C for process and high-limit control | NEMA 4 housing, no thermostat | NEMA 7 ATEX housing with Type J for process and high-limit control | NEMA 7 ATEX housing with Type J process T/C in t-well | NEMA 7 ATEX housing with Type K for process and high-limit control | NEMA 7 ATEX housing with Type K process T/C in t-well | NEMA 7 ATEX housing, no thermostat
Specifications Heater Voltage
208 V | 240 V | 380 V | 480 V
Specifications Heater Wattage

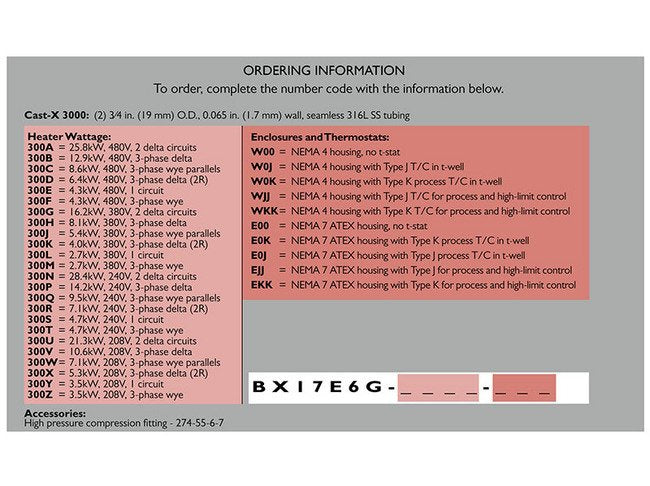

2.7 kW at 380 V and 3-phase wye | 2.7 kW at 380 V and 1 circuit | 3.5 kW at 208 V and 3-phase wye | 3.5 kW at 208 V and 1 circuit | 4.0 kW at 380 V and 3-phase delta (2R) | 4.3 kW at 480 V and 3-phase wye | 4.3 kW at 480 V and 1 circuit | 4.7 kW at 240 V and 3-phase wye | 4.7 kW at 240 V and 1 circuit | 5.3 kW at 208 V and 3-phase delta (2R) | 5.4 kW at 380 V and 3-phase wye parallels | 6.4 kW at 480 V and 3-phase delta (2R) | 7.1 kW at 208 V and 3-phase wye parallels | 7.1 kW at 240 V and 3-phase delta (2R) | 8.1 kW at 380 V and 3-phase delta | 8.6 kW at 480 V and 3-phase wye parallels | 9.5 kW at 240 V and 3-phase wye parallels | 10.6 kW at 208 V and 3-phase delta | 12.9 kW at 480 V and 3-phase delta | 14.2 kW at 240 V and 3-phase delta | 16.2 kW at 380 V and 2 delta circuits | 21.3 kW at 208 V and 2 delta circuits | 25.8 kW at 480 V and 2 delta circuits | 28.4 kW at 240 V and 2 delta circuits
Specifications Industry Focus
Food
Specifications Maximum Power
Up to 28400 W
Specifications Maximum Process Temperature
0 to 500 ºF | 0 to 260 ºC
Specifications Maximum Working Fluid Pressure
2500 psi | 172 bar
Specifications Maximum Working Temperature
250 ºF (121 ºC) - NEMA 7 | 500 ºF (260 ºC) - NEMA 4
Specifications Number Of Deep Mounting Hole
4
Specifications Phase
Single | Three
Specifications Terminal Housing
NEMA 4 | NEMA 7
Specifications Tubing Diameter
3/4 in | 19 mm
Specifications Tubing Material
316 Stainless Steel
Specifications Tubing Wall Thickness
0.065 in | 1.7 mm
Specifications Wetted Surface Material
316L Seamless Stainless Steel Tube
Standard Options 0
Single - or three-phase operation to 480 V.NEMA 4 or 7 housings with and without pilot duty process thermostat.Process and high limit thermocouples.ATEX approved explosion proof housing.
Tube Specifications Number Of Tubes
Two Tubes
Tube Specifications Process Tube Length Per Tube
142 in | 3607 mm
