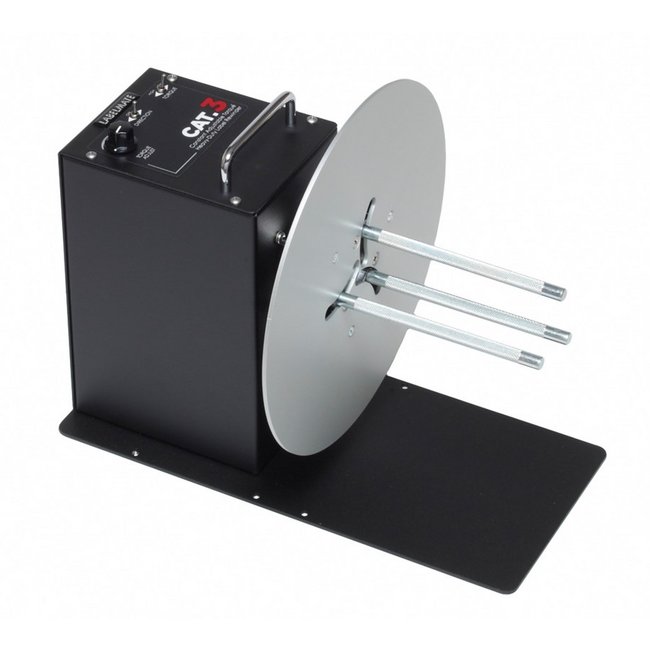

CAT-3 Adjustable Core Specialty Rewinder
CAT-3 Adjustable Core Specialty Rewinder
SKU:CAT-49d490
Achieve precise rewinding with the CAT-3 Adjustable Core Specialty Rewinder for non-standard core diameters, ensuring efficiency and accuracy in operations.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
CAT-3 Adjustable Core Specialty Rewinder
$1,299.99
Quantity: 1
Claim Your Seller Account
CAT-3 Adjustable Core Specialty Rewinder
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CAT-3 Adjustable Core Specialty Rewinder is designed for exceptional flexibility, allowing users to wind onto non-standard diameter cores effortlessly. Equipped with Fin-Style and Adjustable Core Holders, it accommodates core diameters ranging from 1 to 4 inches, and even corelessly. The optional APG-CAT guide ensures precision alignment during rewinding, resulting in neatly wound label rolls. With a durable build, maximum roll diameter of 11 inches, and a maximum speed of 230 inches per second, this rewinder is a reliable solution for various industries requiring efficiency and accuracy.
Product Specifications
Options Options
APG-CAT (Paper Guide)HTO-CAT (Hi-Torque Option)LTO-CAT (Lw-Torque Option)Footswitch
Technical Specs Alternating Current Ac Input Power Voltage
120 to 220 V
Technical Specs Alternating Current Ac Output Power Voltage
12 V
Technical Specs Core Diameter
1 to 4 in | 25 to 102 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Height
14 in | 356 mm
Technical Specs Maximum Media Width
6 in | 152 mm
Technical Specs Maximum Roll Diameter
11 in | 279 mm
Technical Specs Maximum Roll Weight
17 lb | 8 kg
Technical Specs Maximum Speed
230 in/s | 5842 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
0.5 in/s | 13 mm/s
Technical Specs Number Of Flanges
1
Technical Specs Output Power
40 W
Technical Specs Warranty On Power Adapter
1 year
Technical Specs Warranty On Rewinder
5 year
Technical Specs Weight
27 lb | 12.2 kg
Technical Specs Width
12 in | 305 mm
