CAT-3-CHUCK 12 Inch Roll Diameter Rewinder
CAT-3-CHUCK 12 Inch Roll Diameter Rewinder
SKU:CAT-685016
Enhance production efficiency with the CAT-3-CHUCK 12 Inch Roll Diameter Rewinder, perfect for high-volume environments.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
CAT-3-CHUCK 12 Inch Roll Diameter Rewinder
$1,299.99
Quantity: 1
Claim Your Seller Account
CAT-3-CHUCK 12 Inch Roll Diameter Rewinder
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

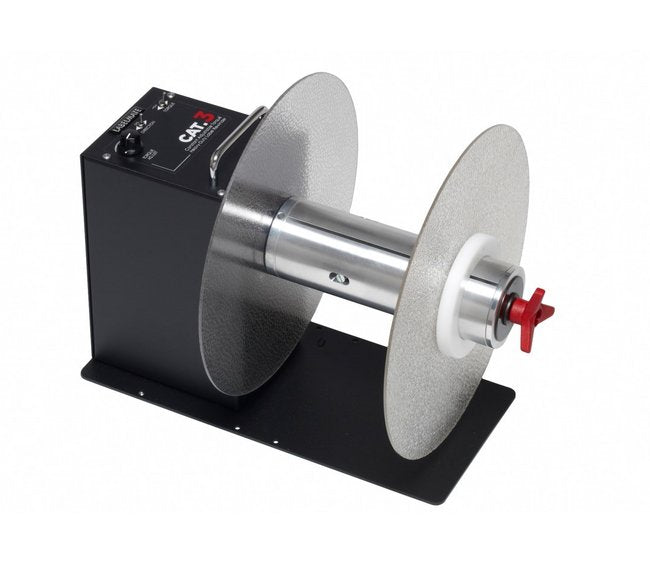

The CAT-3-CHUCK 12 Inch Roll Diameter Rewinder is designed for high-volume production environments and label slitting applications. With a fast loading/unloading system, it accommodates cores and label rolls with ease. This rewinder offers maximum efficiency and convenience, making it ideal for institutions seeking reliable performance and productivity. Built with durable materials and advanced technology, it ensures precision and speed in rewinding processes.
Product Specifications
Options Options
HTO-CAT (Hi-Torque Option)LTO-CAT (Lw-Torque Option)ADAPT-326 (6" Core Adaptor)Footswitch
Technical Specs Alternating Current Ac Input Power Voltage
120 to 220 V
Technical Specs Alternating Current Ac Output Power Voltage
12 V
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Height
14 in | 355 mm
Technical Specs Maximum Media Width
6 to 10 in | 152 to 254 mm
Technical Specs Maximum Roll Diameter
12 in | 305 mm
Technical Specs Maximum Roll Weight
20 lb | 9 kg
Technical Specs Maximum Speed
240 in/s | 6096 mm/s | 388 rpm
Technical Specs Maximum Torque
183 in·oz
Technical Specs Minimum Speed
0.5 in/s | 13 mm/s
Technical Specs Note For Alternating Current Ac Input Power Volt
Depends on whether you order the Chuck, Chuck-220, or Chuck-10 model
Technical Specs Note For Output Power
Depends on whether you order the Chuck, Chuck-220, or Chuck-10 model
Technical Specs Number Of Flanges
2
Technical Specs Output Power
40 W
Technical Specs Warranty On Power Adapter
1 year
Technical Specs Warranty On Rewinder
5 year
Technical Specs Weight
28 to 30 lb | 12.7 to 13.6 kg
Technical Specs Width
12 in | 305 mm
