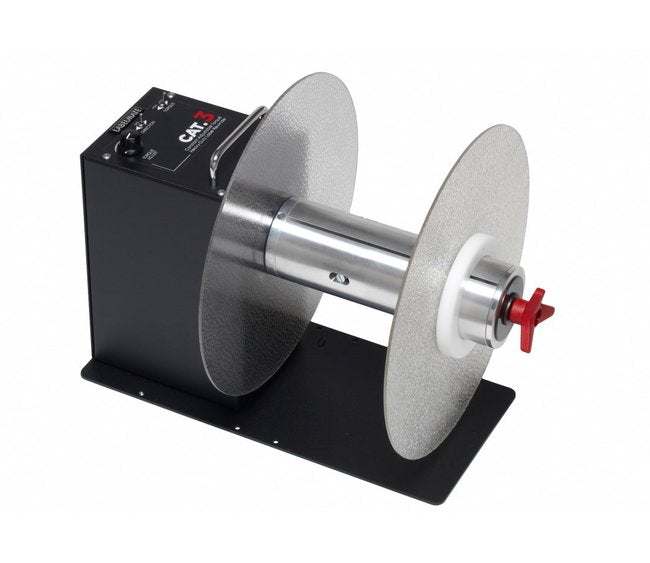

CAT-3-CHUCK 16 Inch Maximum Roll Diameter Rewinder
CAT-3-CHUCK 16 Inch Maximum Roll Diameter Rewinder
SKU:CAT-60472d
CAT-3-CHUCK 16 Inch Rewinder - High-speed, high-volume label processing with 16" roll diameter & 320 in/s speed. 5-year rewinder warranty.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
CAT-3-CHUCK 16 Inch Maximum Roll Diameter Rewinder
$1,899.99
Quantity: 1
Claim Your Seller Account
CAT-3-CHUCK 16 Inch Maximum Roll Diameter Rewinder
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CAT-3-CHUCK 16 Inch Maximum Roll Diameter Rewinder is designed for high-volume production environments and label slitting applications. With a maximum roll diameter of 16 inches and fast loading/unloading capabilities, this rewinder offers ultimate convenience. It features a 3-inch core diameter, 6 to 10-inch maximum media width, and a maximum roll weight of 32 lbs. Operating at speeds of up to 320 inches per second, this rewinder ensures efficient label processing. Backed by a 5-year warranty on the rewinder and 1-year warranty on the power adapter, it combines reliability and performance for demanding applications.
Product Specifications
Options Options
LTO-CAT (Lw-Torque Option)ADAPT-326 (6" Core Adaptor)Footswitch
Technical Specs Alternating Current Ac Input Power Voltage
120 to 220 V
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
17 in | 432 mm
Technical Specs Direct Current Dc Output Power Voltage
19 V
Technical Specs Height
19 in | 482 mm
Technical Specs Maximum Media Width
6 to 10 in | 152 to 254 mm
Technical Specs Maximum Roll Diameter
16 in | 406 mm
Technical Specs Maximum Roll Weight
32 lb | 14.5 kg
Technical Specs Maximum Speed
320 in/s | 8128 mm/s | 485 rpm
Technical Specs Maximum Torque
228 in·oz
Technical Specs Minimum Speed
0.5 in/s | 13 mm/s
Technical Specs Number Of Flanges
2
Technical Specs Output Power
80 W
Technical Specs Warranty On Power Adapter
1 year
Technical Specs Warranty On Rewinder
5 year
Technical Specs Weight
30 to 32 lb | 13.6 to 14.5 kg
Technical Specs Width
16 in | 406 mm
