CAT-3-CHUCK 18 Inch Rewinder
CAT-3-CHUCK 18 Inch Rewinder
SKU:CAT-18b31c
Enhance productivity with the CAT-3-CHUCK 18 Inch Rewinder's convenient core and label roll handling in high-volume production environments.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CAT-3-CHUCK 18 Inch Rewinder
$899.99
Quantity: 1
Claim Your Seller Account
CAT-3-CHUCK 18 Inch Rewinder
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

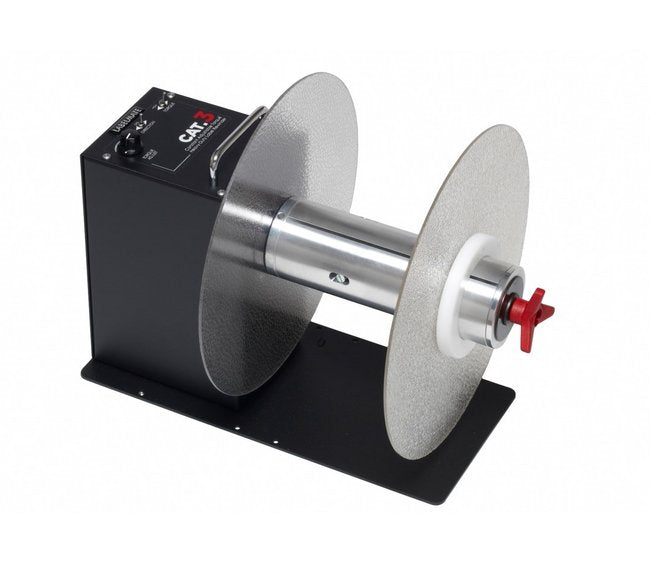

The CAT-3-CHUCK 18 Inch Rewinder is a high-performance solution designed for seamless core and label roll loading/unloading in high-volume production environments. With a maximum roll diameter of 18 inches and a robust build, this rewinder excels in label slitting applications and offers unparalleled convenience. Featuring a durable construction and a warranty of 5 years on the rewinder and 1 year on the power adapter, it ensures longevity and reliability. The CAT-3-CHUCK 18 Inch Rewinder operates at speeds ranging from 0.5 to 360 inches per second, with a maximum torque of 228 in·oz, making it efficient and versatile for various industrial needs.
Product Specifications
Options Options
LTO-CAT (Lw-Torque Option)ADAPT-326 (6" Core Adaptor)Footswitch
Technical Specs Alternating Current Ac Input Power Voltage
120 to 220 V
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
19 in | 482 mm
Technical Specs Direct Current Dc Output Power Voltage
19 V
Technical Specs Height
20 in | 508 mm
Technical Specs Maximum Media Width
6 to 10 in | 152 to 254 mm
Technical Specs Maximum Roll Diameter
18 in | 457 mm
Technical Specs Maximum Roll Weight
50 lb | 22 kg
Technical Specs Maximum Speed
360 in/s | 9144 mm/s | 485 rpm
Technical Specs Maximum Torque
228 in·oz
Technical Specs Minimum Speed
0.5 in/s | 13 mm/s
Technical Specs Number Of Flanges
2
Technical Specs Output Power
80 W
Technical Specs Warranty On Power Adapter
1 year
Technical Specs Warranty On Rewinder
5 year
Technical Specs Weight
34 to 36 lb | 15.4 to 16.3 kg
Technical Specs Width
18 in | 457 mm
