Upgrade your equipment with our premium remanufactured Caterpillar hydraulic and power steering pumps. Built to original specifications, these reconditioned pumps ensure reliable performance and durability. Ideal for heavy-duty applications, our Caterpillar reman pumps offer cost-effective solutions without compromising on quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Advances 0
Increased Capacity at Lower Operating PressureFX compressors adjust their stroke rate automatically according to the operating conditions.This increase in stroke rate makes full use of available horsepower and results in higher capacity when the discharge pressure is low. For batch process applications, a higher capacity can significantly reduce the compression time.Variable Inlet PressureFX compressors efficiently accommodate a wide range of inlet pressures. It is usually unnecessary to provide an expensive pressure regulator. In addition, operation with the highest available inlet pressure increases the capacity of the machine.
Application 0
FLEXI-POWER⢠High - Pressure Gas Compressors are ideally suited for:Hot isostatic pressingSupercritical extractionPneumatic testingShock tube pressurizationWind tunnel storage pressurizationCalibration of transducers and other instrumentsGas transfer and circulationHigh - pressure chemical reactionsWell injectionMaterial testingGas leak testing
Compressor Design 0
FLEXI - POWER⢠High-Pressure Gas Compressors have two basic components, an intensifier and a hydraulic power unit.The Intensifier, mounted on top of the console, is made up of first- and second-stage gas cylinders and a hydraulic drive cylinder. Each cylinder contains a piston.Tie-rods attach the gas cylinders to the hydraulic cylinder. A hydraulic flange and isolation spacer between each gas cylinder and hydraulic cylinder separate the hydraulic fluid from the process cylinders.The Hydraulic Power Unit, contained within the console, is made up of an electric motor, hydraulic pump, oil reservoir, directional control valve and other hydraulic components.The power unit provides pressurized hydraulic oil to the intensifier. The intensifier uses this pressurized hydraulic oil to compress gas.The four-way valve controls the direction of hydraulic oil flow to and from the intensifier.
Compressor Efficiency 0
Conventional, fixed-displacement compressors produce a near constant flow of gas when operating at fixed inlet conditions, regardless of the discharge conditions. When process pressures are low, a relatively small percentage of available horsepower is utilized by the compressor. These compressors waste power and time.FLEXI - POWER⢠compressors use most of their power, even when discharge pressures are low. At low discharge pressures, the intensifier strokes faster displacing more gas.As pressure increases, FLEXI - POWER⢠compressors slow down to produce a higher pressure and corresponding maximum flow-rate. At the maximum discharge pressure, the FLEXI - POWER⢠compressor displaces the same amount of gas as a conventional fixed-displacement compressor.
Compressor Selection 0
The selection of a FLEXI-POWER⢠compressor for a batch process requires the solution of a first-order differential equation.Hydro-Pac has developed a computer program for this solution which uses actual gas data to model the changing capacity of a FLEXI-POWER⢠compressor.This program considers changing inlet and discharge pressures, temperature, and type of gas when selecting a compressor.Hydro-Pac can optimize compressor selection - a task best accomplished by our computer.
Hydraulic System Drive Features 0
An advanced hydraulic drive system powers the Hydro - Pac FLEXI - POWER⢠compressor.Easily removable, sound-dampening panels enclose the hydraulic drive system.The hydraulic drive system allows the machine to be started under full load. Special unloading devices are not required.The slow operating speed and low inertia load eliminate the need for special foundations.Hydraulic oil is cooled and constantly filtered.Oil reservoir is baffled for cooling and foam dispersion, and is furnished with a clean-out cover.
Intensifier Design Features 0

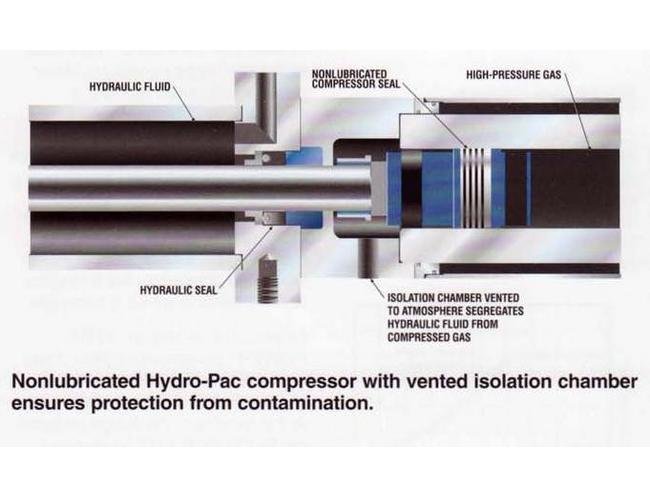

Near-Isothermal CompressionThe long, slow stroke of Hydro-Pac compressors allows heat removal during the compression cycle. This near-isothermal compression cycle requires less power than the faster compression cycle of a diaphragm or crank-driven machine.The near-isothermal compression cycle of Hydro-Pac compressors consumes less energy and requires less power to pressurize a given volume.Patented Free-Piston DesignHydro-Pacâs patented free-piston design allows replacement of the high-pressure packing in minutes without major disassembly of the intensifier. These pistons are pressure energized allowing them to adjust automatically for wear. The pistons are nonlubricated unless specifically requested by the user.Fall-Safe Freedom from ContaminationHydro-Pac compressors are non- lubricated eliminating lubrication contamination of the gas. In addition, a vented isolation chamber separates the gas cylinder from the hydraulic drive cylinder.For applications requiring ultra-pure gas, optional full-length isolation spacers are available that do not allow entry of the oil-wetted portion of the plunger rod into the gas cylinder.Check ValvesInlet and discharge check valves are housed in a check valve body. The valve seats are reversible. The poppet, guide and spring are a cartridge. The guide accurately aligns the poppet with the seat. Large ports allow free flow of gas and reduce pressure drop.
Intensifier Operation 0
Stage I CompressionGas flows through the inlet check valve and fills the larger diameter first - stage cylinder.Pressurized hydraulic fluid, acting on the hydraulic piston, strokes the piston assembly to the left compressing the gas in the first - stage cylinder.Gas in the first - stage cylinder flows through the check valves into the smaller diameter second-stage cylinder.Stage II CompressionAt the end of stage I compression, the four-way valve changes position and directs pressurized hydraulic fluid to the left side of the hydraulic piston.The piston assembly moves to the right compressing gas in the second - stage cylinder. Gas flows out of the second-stage cylinder into the discharge gas line.The piston assembly reverses direction at the end of the second- stage stroke and the cycle repeats.
Manufacturing Notes 0
Capacity curves and operating envelopes are available upon request.
Optional Equipment 0
Spare-parts kitEnclosure for intensifierMotor starterPressure gauges for suction, interstage and dischargeRelief valves for gas inlet and discharge linesAftercoolerCoolant-flow sensorGas piston lubricationHeater for oil reservoirExplosion-proof motor and controlsSpecial motor and control powerComplete compressor packagesInstallation assistance
Options Available For Compressing 0
HydrogenEthyleneOther gases
Quality 0
We are committed to providing the best compressor possible. Some of the many steps taken to ensure the quality of Hydro - Pac compressors are :Careful, conservative engineering of all equipment.Hydrostatic pressure testing of all gas cylinders prior to assembly.All machines run at maximum - rated conditions prior to shipment.
Safety 0
FLEXI - POWER⢠High Pressure Gas Compressors are designed and built for maximum safety Some of the specific safety features are :An interstage relief valve protects the interstage and first stage of the compressor from over pressurization.A pressure - compensated hydraulic pump and backup hydraulic relief valve provide redundant protection against over -pressurization of the hydraulic system.Protective panels shield the hydraulic drive system and electric motor.Leak-before-failure design of the high-pressure seals enhances safety.
Service And Spare Parts 0
Trained service technicians are available for field repair.We provide training on the operation and maintenance of our products.Complete product overhaul and rebuild can be done at our facility.Our computer based inventory allows parts shipment from stock.
Specifications Discharge Pressure
60000 psi | 415 MPa
Specifications Height
56.5 in | 1435 mm
Specifications Length
110 in | 2795 mm
Specifications Power
40 hp | 30 kW
Specifications Reservoir Volume
70 gal | 265 L
Specifications Weight
4200 lb | 1900 kg
Specifications Width
34 in | 865 mm
Standard Equipment 0
FLEXI-POWER⢠High-Pressure Gas Compressors are furnished as complete units.Gas intensifier with inlet, interstage and discharge check valvesElectric motor, 230/460 V, 3 Phase, 60 Hz, TEFCHydraulic power unit with pump, directional control valve and filterGauges for oil pressure, level and temperatureSensors for low oil level and high oil temperatureInterstage relief valveHeat exchanger for hydraulic oilInterstage gas coolerInstruction manual with parts list
Standard Gases 0
ArgonNitrogenHeliumCarbon dioxideDry airMixtures of 20% Oxygen and other inert gasMethaneOther inert gases
Utilities 0
Electrical : 230/460 V, 3 phase, 60 Hz (Other Voltages Available)Cooling water is required. The amount depends on the machine
