CB-401 Single Flange Clutch Brake Element
CB-401 Single Flange Clutch Brake Element
SKU:CLU-1eea4d
High-performance CB-401 Single Flange Clutch Brake Element with 2040 lb·in torque rating, ideal for reliable and durable use.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
CB-401 Single Flange Clutch Brake Element
$799.99
Quantity: 1
Claim Your Seller Account
CB-401 Single Flange Clutch Brake Element
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-401 Single Flange Clutch Brake Element in size 6CB200 offers a robust torque rating of 2040 lb·in, ensuring reliable performance. With a maximum speed of 1800 rpm and a low centrifugal loss constant Cs of 0.41 E-06 bar/rpm2, this element delivers consistent operation. Weighing 7.0 lb and featuring a friction area of 36 in², this element guarantees durability and efficiency. Meeting stringent industry standards, it is designed for a minimum drum diameter of 5.90 inches and includes 6 friction shoes for enhanced functionality.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified. For example 142095JA, 142095JB, 142095JC, 142095JG
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
19 in³ | 0.32 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.38 in | 10 mm
Specifications Centrifugal Loss Constant Cs
0.41 E-06 bar/rpm2 | 6.0 E-06 psi/rpm2

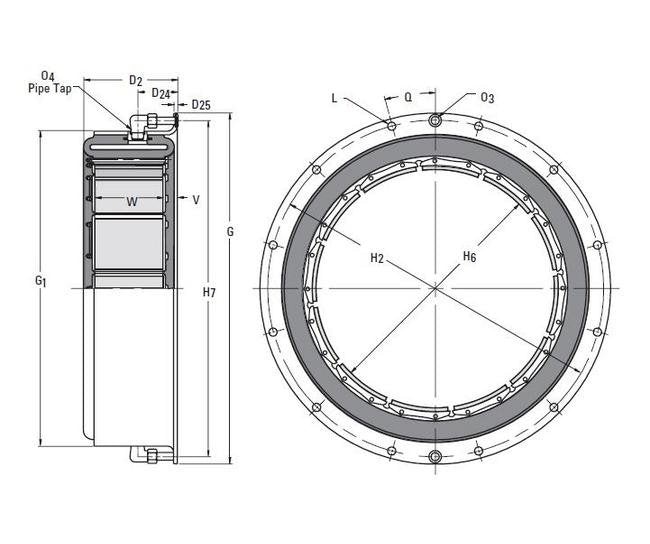

Specifications Dimension D2
2.94 in | 75 mm
Specifications Dimension D24
1.56 in | 40 mm
Specifications Dimension D25
0.09 in | 2 mm
Specifications Dimension G
10.752 in | 273.1 mm
Specifications Dimension G1
9.06 in | 230 mm
Specifications Dimension H2
10.000 in | 254 mm
Specifications Dimension H6
6.16 in | 156 mm
Specifications Dimension H7
10.00 in | 254 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.56 in | 14 mm
Specifications Friction Area
36 in² | 232.2 cm²
Specifications Friction Shoe Width W
2.00 in | 51 mm
Specifications Inertia
1.0 lb·ft² | 0.04 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
5.90 in | 150 mm
Specifications New Friction Lining Thickness
0.14 in | 4 mm
Specifications Number Of Friction Shoes
6
Specifications Number Of Mounting Holes
8
Specifications Size
6CB200
Specifications Torque Rating 75 Psi55 Bar
2040 lb·in | 231 Nm
Specifications Weight
7.0 lb | 3.2 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
