CB-402 Single Flange CB Elements
CB-402 Single Flange CB Elements
SKU:CLU-0a104b
High-performance CB-402 Single Flange CB Elements for industrial applications, providing 92400 lb·in Torque Rating, 1100 rpm Max Speed, and durable design.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
CB-402 Single Flange CB Elements
$2,899.99
Quantity: 1
Claim Your Seller Account
CB-402 Single Flange CB Elements
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-402 Single Flange CB Elements are designed for precision performance in industrial applications, offering a Torque Rating of 92400 lb·in, Maximum Speed of 1100 rpm, and Inertia of 210 lb·ft². With 16 Friction Shoes and dimensions meeting stringent standards, this product ensures reliable and durable operation. Ideal for Drum Clutches and Brakes, these elements offer exceptional reliability and efficiency in high-intensity settings.

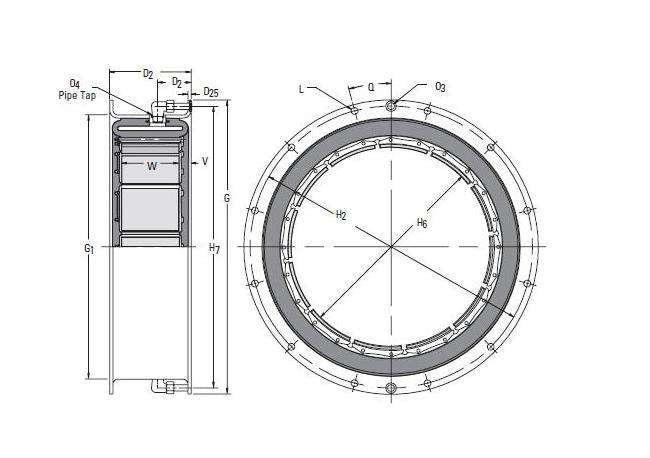

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
260 in³ | 4.26 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.35 E-06 bar/rpm2 | 34 E-06 psi/rpm2
Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
34.000 in | 863.6 mm
Specifications Dimension G1
31.00 in | 787 mm
Specifications Dimension H2
32.750 in | 831.9 mm
Specifications Dimension H6
26.19 in | 665 mm
Specifications Dimension H7
32.50 in | 826 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
404 in² | 2606 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
210 lb·ft² | 8.82 kg·m²
Specifications Maximum Speed
1100 rpm
Specifications Minimum Drum Diameter
25.81 in | 656 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
16
Specifications Number Of Mounting Holes
16
Specifications Size
26CB525
Specifications Torque Rating 75 Psi55 Bar
92400 lb·in | 10400 Nm
Specifications Weight
133 lb | 60 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
