CB-AG Collet Chucks
CB-AG Collet Chucks
SKU:QUI-36c940
Precision CB-AG Collet Chucks with compensating pull back design for superior rigidity and accuracy in machining shafts between centers.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
CB-AG Collet Chucks
$1,899.99
Quantity: 1
Claim Your Seller Account
CB-AG Collet Chucks
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

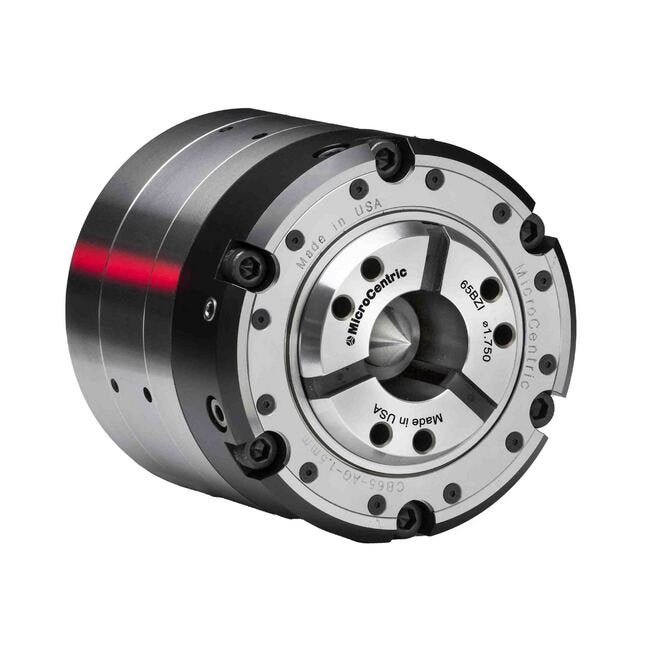

The CB-AG Collet Chucks feature a compensating pull back design with a floating collet seat, ideal for machining shafts between centers. This pull back design allows for mounting centers or other part locators in the chuck's interior for precise machining. Radial adjusting screws ensure accuracy within .0002 inches. With a compact yet rigid design, the CB-AG Collet Chucks deliver high rigidity and maximum clamp force of 23,605 lbs. All components are hardened and precision ground for durability and accuracy, meeting the highest industry standards.
Product Specifications

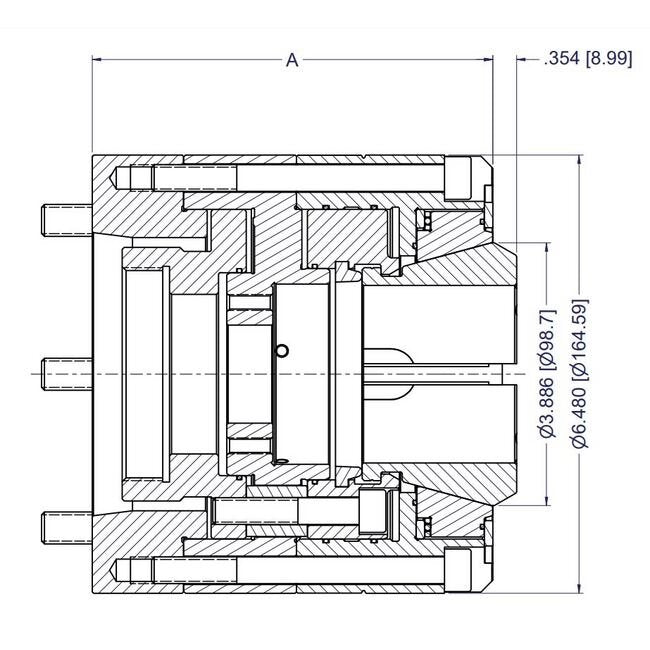

Specifications A Dimension
5.178 in | 131.52 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 208
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M65x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Total Compensation
.060 in | 1.50 mm
Specifications Weight
37.59 lb | 17.05 kg
