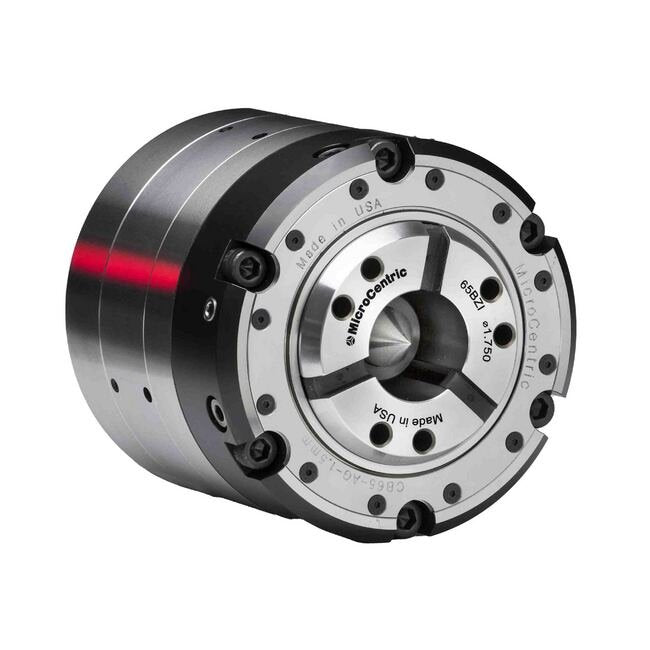

The CB-AG Collet Chuck with Compensating Pull Back Design is engineered for precision machining of shafts between centers. Featuring a floating collet seat that can be easily locked out for on-center clamping, this chuck offers unparalleled rigidity and accuracy. With radial adjusting screws for precise centering within .0002 inches, a lubricated-for-life design, and all components hardened and precision ground, the CB-AG ensures exceptional longevity and minimal maintenance requirements. Designed with a compact form factor and exceptional clamping force, this collet chuck is ideal for a wide range of machining applications.
Product Specifications

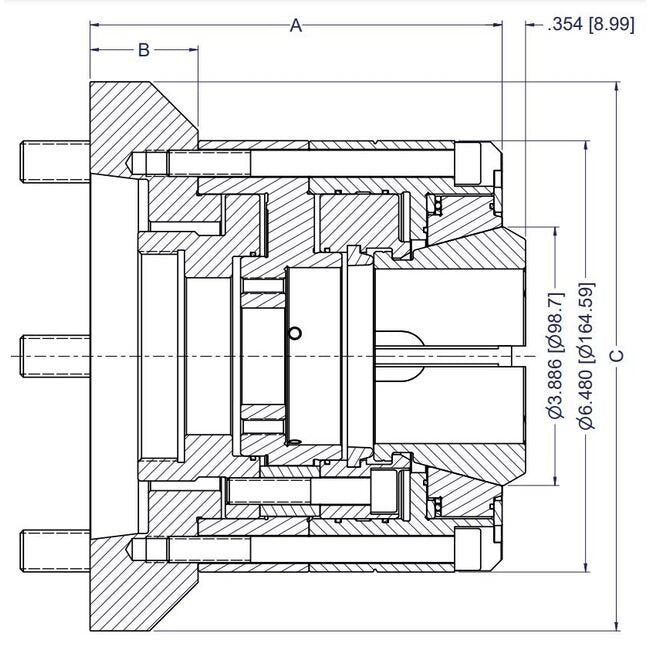

Specifications A Dimension
6.2 in | 157.48 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
65BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 065 205
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Total Compensation
.060 in | 1.50 mm
Specifications Weight
48.34 lb | 21.92 kg
