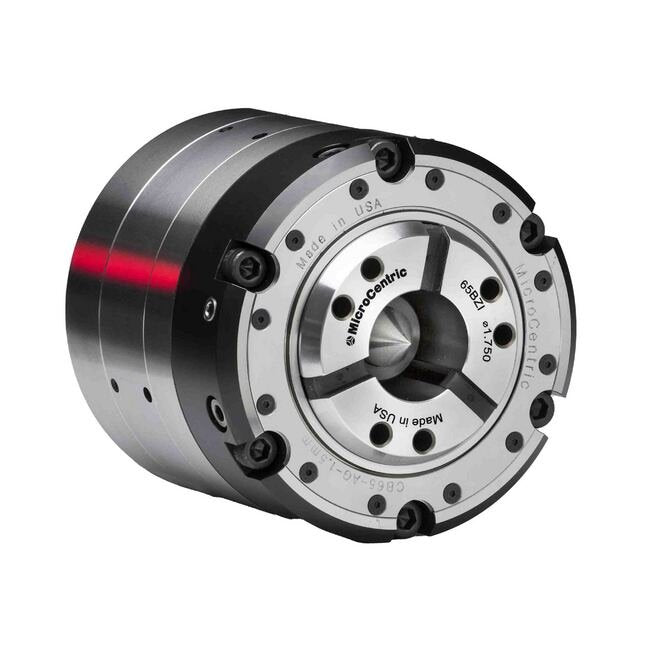

The CB-AG Compensating Collet Chuck features a pull-back design with a floating collet seat, ideal for machining shafts between centers. With a compact and rigid construction, it offers precise mounting within .0002â, locking capability for on-center clamping, and lubricated-for-life design for minimal maintenance. This chuck is hardened and precision-ground for durability and accuracy, meeting the highest industry standards for long-lasting performance.
Product Specifications

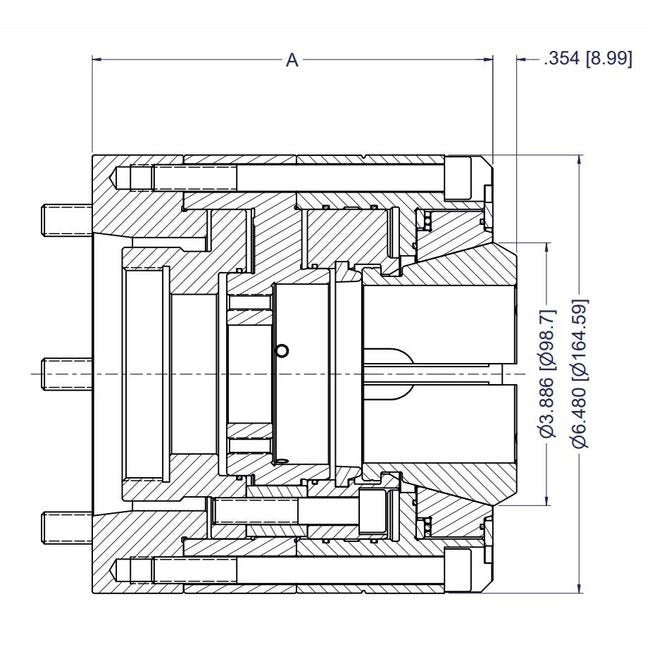

Specifications A Dimension
5.925 in | 150.5 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
65BZI
Specifications Item No
15 065 203
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Total Compensation
.060 in | 1.50 mm
Specifications Weight
41.86 lb | 18.98 kg
