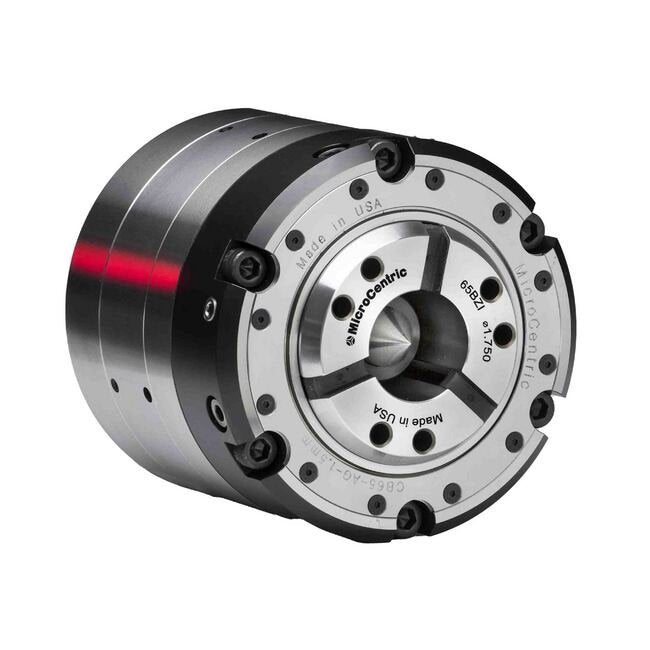

CB-AG Compensating Pull Back Collet Chucks
CB-AG Compensating Pull Back Collet Chucks
SKU:QUI-536e6c
Precision CB-AG Compensating Pull Back Collet Chucks for shaft machining with superior rigidity and precision. Ideal for industrial use.
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
CB-AG Compensating Pull Back Collet Chucks
$1,099.99
Quantity: 1
Claim Your Seller Account
CB-AG Compensating Pull Back Collet Chucks
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-AG Compensating Pull Back Collet Chucks feature a pull-back design with a floating collet seat designed for precision machining of shafts between centers, making it ideal for industrial applications. With radial adjusting screws for fine center truing and a robust construction with all components hardened and precision ground, these chucks ensure the highest accuracy and long-term durability. The compact design enhances rigidity while offering a total compensation of 1.5mm (.060'') and a clamping force of up to 23,605 lbs (105 kN), making them suitable for a wide range of machining operations.
Product Specifications

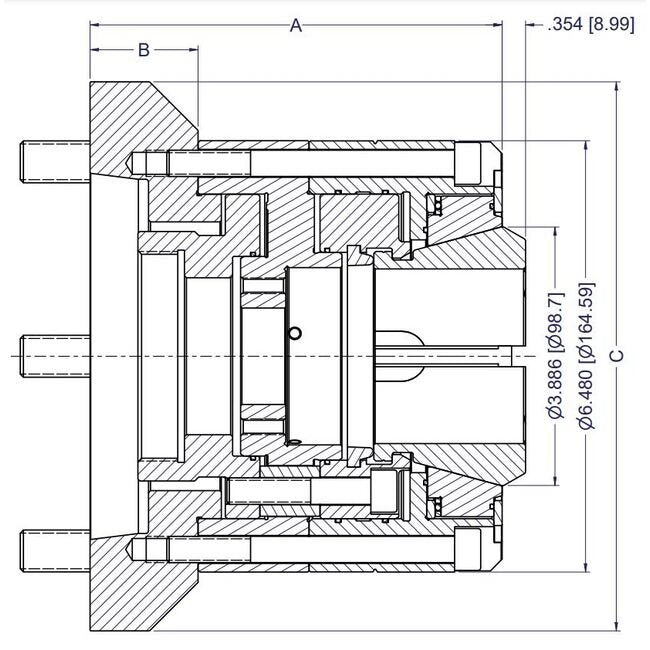

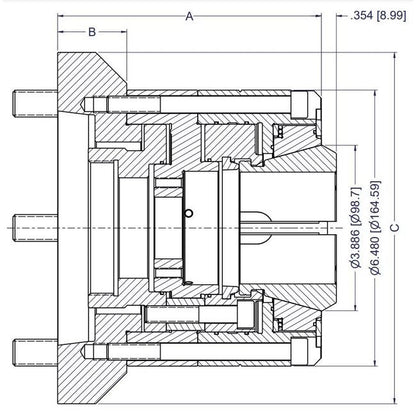

Specifications A Dimension
6.2 in | 157.48 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
65BZI
Specifications C Dimension
9.25 in | 234.95 mm
Specifications Item No
15 065 206
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M100x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Total Compensation
.060 in | 1.50 mm
Specifications Weight
53.19 lb | 24.12 kg
