CB Drum Hub Mounting Components
CB Drum Hub Mounting Components
SKU:CLU-f188f6
Reliable CB Drum Hub Mounting Components for precise clutch and brake operations in industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
CB Drum Hub Mounting Components
$599.99
Quantity: 1
Claim Your Seller Account
CB Drum Hub Mounting Components
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

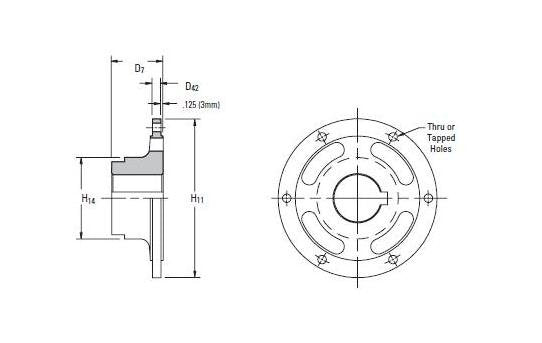

The CB Drum Hub Mounting Components are expertly engineered to deliver reliable clutch or brake performance in demanding industrial settings. Ideal for high-speed, cyclic operations and power transmission, these components are meticulously crafted to ensure durability and precision. With a Size of 20CB500, Thru Holes Type, and weighing 93 lb (42 kg), they offer excellent inertia at 8.50 lb·ft² (0.36 kg·m²) for seamless operation. The minimum bore of 2.75 in (70 mm) and maximum bore of 4.75 in (121 mm) ensure versatile applicability. Dimensions D7, D42, H11, and H14 further showcase the meticulous design and rigorous standards adhered to in their construction.
Product Specifications
Specifications Dimension D42
0.75 in | 19 mm
Specifications Dimension D7
5.75 in | 146 mm
Specifications Dimension H11
17.50 in | 445 mm
Specifications Dimension H14
7.50 in | 191 mm
Specifications Inertia
8.50 lb·ft² | 0.36 kg·m²
Specifications Maximum Bore
4.75 in | 121 mm
Specifications Minimum Bore
2.75 in | 70 mm
Specifications Size
20CB500
Specifications Type
Thru Holes
Specifications Weight
93 lb | 42 kg
