CB Drum Hub Mounting Components
CB Drum Hub Mounting Components
SKU:CLU-b4e09b
Dependable CB Mounting Components for precise clutch and brake performance in industrial settings. Designed for high-speed operations and power transmission.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
CB Drum Hub Mounting Components
$599.99
Quantity: 1
Claim Your Seller Account
CB Drum Hub Mounting Components
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB Mounting Components - Drum Hubs are meticulously crafted to deliver reliable clutch and brake performance in demanding industrial settings. Engineered for high-speed, cyclic operations and robust power transmission, these components ensure seamless operation for critical applications. With a size of 16CB500, tapped holes design, and a weight of 68 lb, these mounting components offer exceptional efficiency and durability. Featuring precise dimensions and high inertia, they are ideal for coupling systems and power transmission needs.
Product Specifications

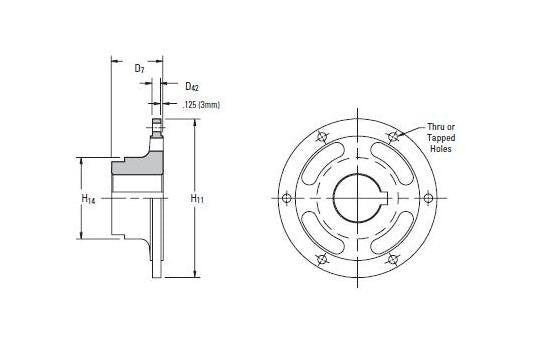

Specifications Dimension D42
0.75 in | 19 mm
Specifications Dimension D7
5.75 in | 146 mm
Specifications Dimension H11
13.50 in | 343 mm
Specifications Dimension H14
7.00 in | 178 mm
Specifications Inertia
6.50 lb·ft² | 0.27 kg·m²
Specifications Maximum Bore
4.50 in | 114 mm
Specifications Minimum Bore
1.75 in | 44 mm
Specifications Size
16CB500
Specifications Type
Tapped Holes
Specifications Weight
68 lb | 31 kg
