CB Drum Hubs for Industrial Clutches and Brakes
CB Drum Hubs for Industrial Clutches and Brakes
SKU:CLU-5b96be
Boost industrial clutch & brake performance with CB Drum Hubs. Ideal for high-speed operations, coupling, & power transmission.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
CB Drum Hubs for Industrial Clutches and Brakes
$699.99
Quantity: 1
Claim Your Seller Account
CB Drum Hubs for Industrial Clutches and Brakes
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance clutch and brake performance in demanding industrial environments with our CB Drum Hubs. Built for high-speed operations, these mounting components provide reliable coupling and power transmission. With specifications including a Size of 36CB525, Tapped Holes Type, and a sturdy Weight of 305 lb | 138 kg, our Drum Hubs deliver optimal performance and durability for critical applications.

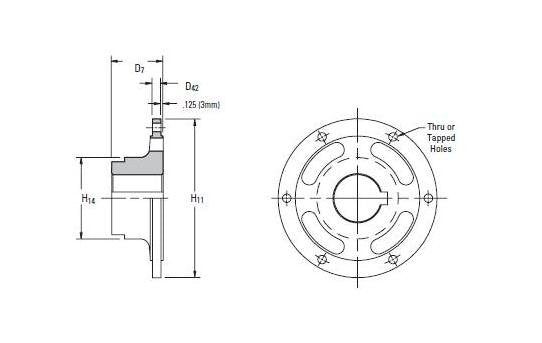

Product Specifications
Specifications Dimension D42
0.75 in | 19 mm
Specifications Dimension D7
9.00 in | 229 mm
Specifications Dimension H11
32.50 in | 826 mm
Specifications Dimension H14
11.00 in | 279 mm
Specifications Inertia
159.00 lb·ft² | 6.68 kg·m²
Specifications Maximum Bore
7.00 in | 178 mm
Specifications Minimum Bore
4.00 in | 102 mm
Specifications Size
36CB525
Specifications Type
Tapped Holes
Specifications Weight
305 lb | 138 kg
