CB Drum Hubs - Size 6CB200
CB Drum Hubs - Size 6CB200
SKU:CLU-9f4d52
Dependable CB Drum Hubs for industrial clutch and brake applications. Ideal for high-speed operations and precise power transmission.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
CB Drum Hubs - Size 6CB200
$189.99
Quantity: 1
Claim Your Seller Account
CB Drum Hubs - Size 6CB200
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB Drum Hubs offer outstanding reliability for clutch and brake applications in demanding industrial settings. Engineered for high-speed operations, these components deliver exceptional coupling efficiency and power transmission. With a robust construction and precise specifications, they ensure consistent performance in critical operations.

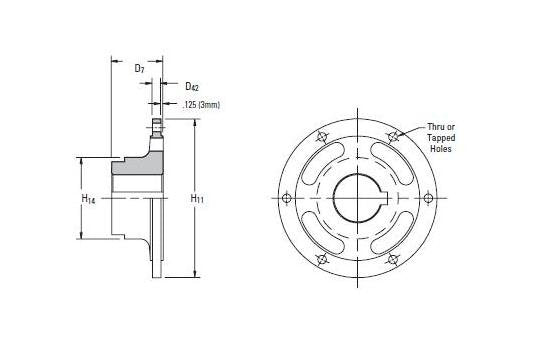

Product Specifications
Specifications Dimension D42
0.63 in | 16 mm
Specifications Dimension D7
2.75 in | 70 mm
Specifications Dimension H11
5.00 in | 127 mm
Specifications Dimension H14
3.75 in | 95 mm
Specifications Inertia
0.50 lb·ft² | 0.02 kg·m²
Specifications Maximum Bore
2.50 in | 64 mm
Specifications Minimum Bore
1.50 in | 38 mm
Specifications Size
6CB200
Specifications Type
Thru Holes
Specifications Weight
9 lb | 4.1 kg
