CB Elements for Drum Clutches and Brakes
CB Elements for Drum Clutches and Brakes
SKU:CLU-581e4b
Boost machinery efficiency with our CB Elements. Size 36CB525, torque rating 172000 lb·in, ideal for industrial use.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
CB Elements for Drum Clutches and Brakes
$2,499.99
Quantity: 1
Claim Your Seller Account
CB Elements for Drum Clutches and Brakes
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial machinery performance with our Single Flange CB Elements. This size 36CB525 element boasts a torque rating of 172000 lb·in, ensuring reliable operation at up to 800 rpm. With a durable construction and precise dimensions, this element is designed for efficiency and longevity. Experience smooth engagement and precise control with our friction shoes and air inlet thread. Ideal for institutional and government procurement needs, meeting stringent industry standards.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.10.00 degrees for elements with one air inlet, 5.00 degrees for elements with two or four air inlets.
Specifications Air Inlet Thread
3/4-14
Specifications Air Tube Cavity
350 in³ | 5.74 dm³
Specifications Bolt Hole Size L
0.750 in | 19 mm
Specifications Centrifugal Loss Constant Cs
3.31 E-06 bar/rpm2 | 48 E-06 psi/rpm2

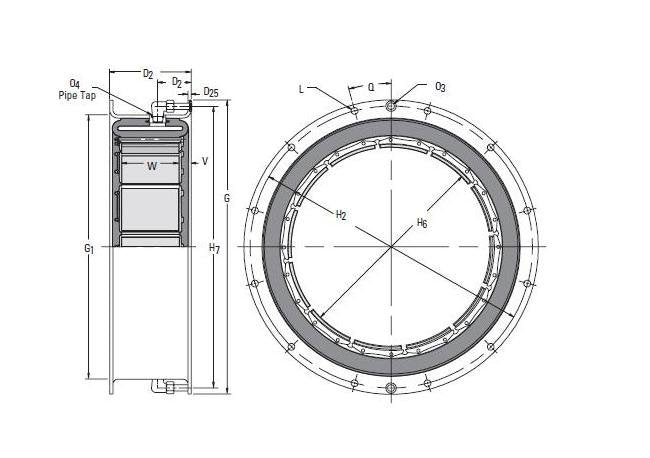

Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.75 in | 70 mm
Specifications Dimension D25
0.28 in | 7 mm
Specifications Dimension G
44.625 in | 1133.5 mm
Specifications Dimension G1
41.56 in | 1056 mm
Specifications Dimension H2
43.125 in | 1095.4 mm
Specifications Dimension H6
36.19 in | 919 mm
Specifications Dimension H7
43.25 in | 1099 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
550 in² | 3548 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
510 lb·ft² | 21.42 kg·m²
Specifications Maximum Speed
800 rpm
Specifications Minimum Drum Diameter
35.81 in | 910 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
22
Specifications Number Of Mounting Holes
18
Specifications Size
36CB525
Specifications Torque Rating 75 Psi55 Bar
172000 lb·in | 19400 Nm
Specifications Weight
178 lb | 81 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
