CB Elements Single Flange
CB Elements Single Flange
SKU:CLU-5ac8da
High-performance CB Elements Single Flange for industrial applications, offering precision, durability, and reliability.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
CB Elements Single Flange
$2,899.99
Quantity: 1
Claim Your Seller Account
CB Elements Single Flange
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB Elements Single Flange is a high-performance mechanical component designed for industrial applications requiring precision and durability. With a torque rating of 106,000 lb·in and a maximum speed of 1000 rpm, this element ensures reliable operation under demanding conditions. The friction area of 430 in² and 17 friction shoes provide exceptional grip and heat dissipation for consistent performance. Engineered to meet stringent industry standards, this product excels in applications where reliability and efficiency are paramount.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.

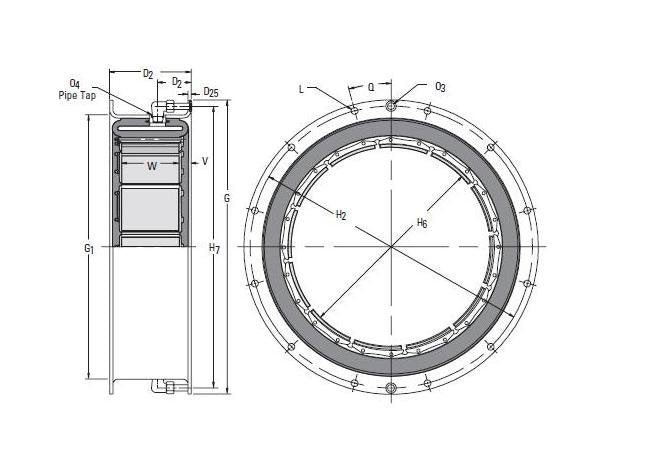

Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
280 in³ | 4.59 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.55 E-06 bar/rpm2 | 37 E-06 psi/rpm2
Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
36.000 in | 914.4 mm
Specifications Dimension G1
33.00 in | 838 mm
Specifications Dimension H2
34.750 in | 882.7 mm
Specifications Dimension H6
28.19 in | 716 mm
Specifications Dimension H7
34.50 in | 876 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
430 in² | 2774 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
252 lb·ft² | 10.58 kg·m²
Specifications Maximum Speed
1000 rpm
Specifications Minimum Drum Diameter
27.81 in | 706 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
17
Specifications Number Of Mounting Holes
16
Specifications Size
28CB525
Specifications Torque Rating 75 Psi55 Bar
106000 lb·in | 12000 Nm
Specifications Weight
140 lb | 63 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
