Experience unparalleled precision with our CB-NB Collet Chucks featuring a Pull Back design for maximum clamping force efficiency. With a low profile, radial adjusting screws, and lubricated for life design, these chucks offer exceptional accuracy, rigidity, and tool clearance. Hardened components ensure long-lasting performance, while the included spindle adapter plate and draw tube connector enhance convenience and versatility. From the Min. Clamping Diameter of 0.156 in to the Max. Speed of 6,000 rpm, these chucks are engineered to meet the highest standards of accuracy and durability in machining operations.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

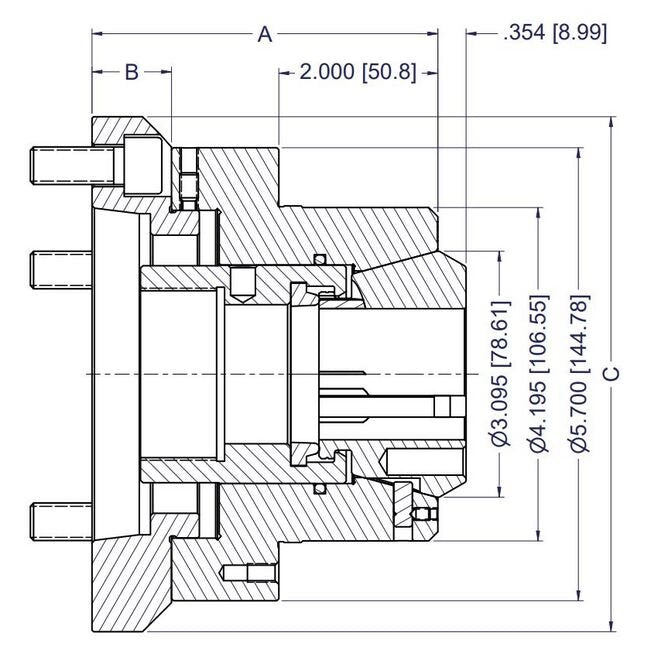

Specifications A Dimension
4.35 in | 115.4 mm
Specifications B Dimension
1 in | 25.4 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications C Dimension
6.48 in | 164.59 mm
Specifications Item No
15 042 173
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M75x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-6
Specifications Weight
16.7 lb | 7.6 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
