CB-NB Pull Back Collet Chuck
CB-NB Pull Back Collet Chuck
SKU:QUI-fe1378
Maximize clamping efficiency with the CB-NB Pull Back Collet Chuck, ensuring precision and rigidity. Ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chuck
$899.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chuck
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chuck features a pull back design that enhances clamping efficiency by concentrating forces towards the spindle, ensuring maximum accuracy and rigidity. With a low profile OD and radial adjusting screws for precise alignment, this chuck offers increased tool clearance, utilizing the machine's Z axis effectively. Hardened components and a lubricated-for-life design guarantee minimal maintenance and long-term accuracy for institutional and industrial applications.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

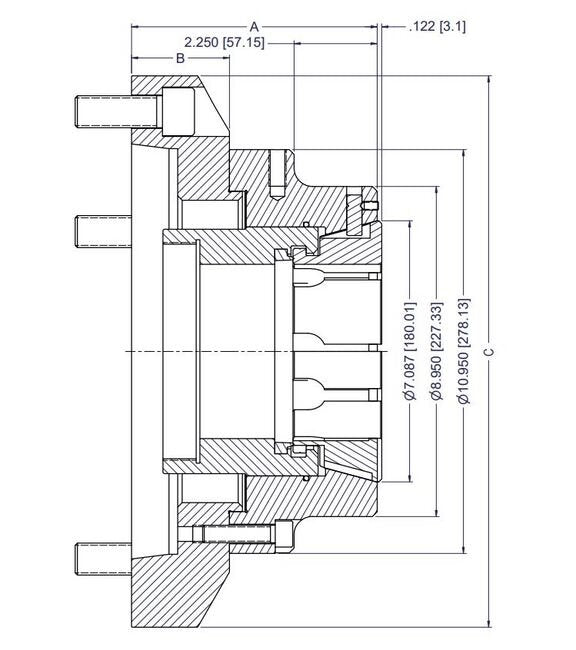

Specifications A Dimension
6.65 in | 168.91 mm
Specifications B Dimension
2.65 in | 67.31 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications C Dimension
14.95 in | 379.73 mm
Specifications Item No
15 120 203
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-15
Specifications Weight
134.73 lb | 61.1 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
