CB-NB Pull Back Collet Chuck
CB-NB Pull Back Collet Chuck
SKU:QUI-277132
Maximize clamping efficiency with the CB-NB Pull Back Collet Chuck. Ideal for high-precision machining applications, this chuck offers superior accuracy and rigidity.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chuck
$599.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chuck
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chuck features a Pull Back design that optimizes clamping efficiency by concentrating forces towards the spindle for superior accuracy and rigidity. With a low profile OD and radial adjusting screws for precise alignment, this chuck offers increased tool clearance and maximum Z-axis utilization. Hardened components and a lubricated-for-life design ensure minimal maintenance and long-term accuracy. With a Max. Clamp Force of 21,132 lbs and compatibility with machines requiring A2-5 spindle nose, this chuck is a reliable choice for high-precision machining applications.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

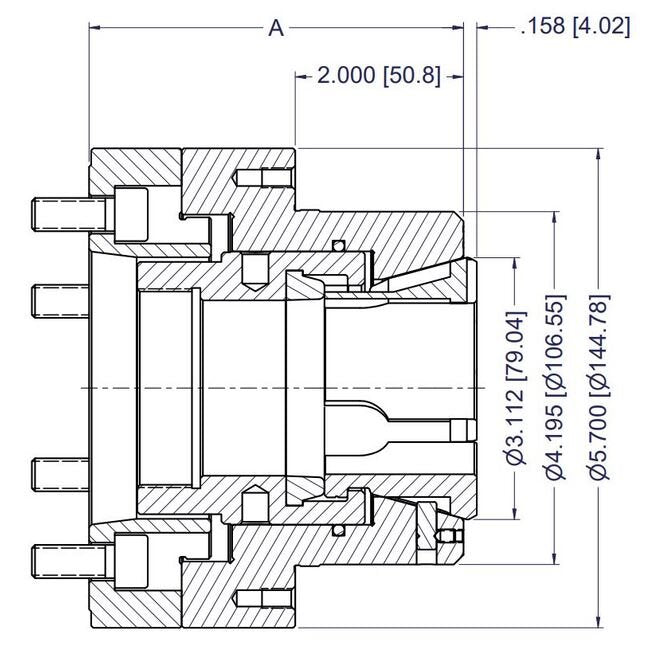

Specifications A Dimension
4.45 in | 113 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK52BZI
Specifications Item No
15 052 110
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.000 in | 52 mm
Specifications Max Clamp Force
21,132 lbs | 94 kN
Specifications Max Draw Tube Thread
M68x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Weight
18.62 lb | 8.44 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
