CB-NB Pull Back Collet Chuck
CB-NB Pull Back Collet Chuck
SKU:QUI-4386ee
Maximize clamping efficiency and rigidity with CB-NB Pull Back Collet Chuck. Low profile, maximum accuracy, and long-term durability.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chuck
$499.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chuck
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chuck features a Pull Back design that optimizes clamping efficiency and rigidity by directing forces towards the spindle, ensuring maximum accuracy. With a low profile and short length, it allows for increased tool clearance and optimal Z axis utilization. Radial adjusting screws enable precise chuck assembly adjustments within .0002 inches. Hardened, precision-ground components ensure long-term accuracy and durability, while the lubricated for life design minimizes maintenance. With a Max. Clamp Force of 21,132 lbs and an Accuracy of .0004 inches, this collet chuck is ideal for high precision machining applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

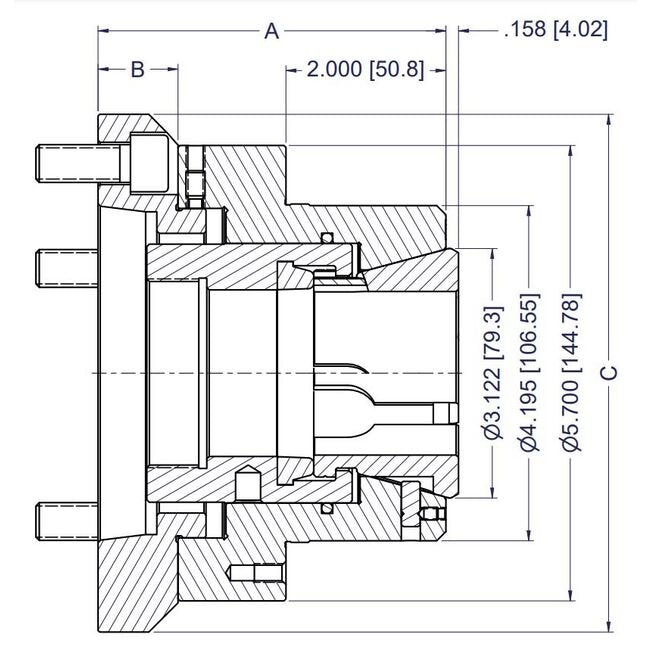

Specifications A Dimension
4.05 in | 102.9 mm
Specifications B Dimension
0.703 in | 17.86 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK52BZI
Specifications C Dimension
5.95 in | 151.13 mm
Specifications Item No
15 052 111
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.000 in | 52 mm
Specifications Max Clamp Force
21,132 lbs | 94 kN
Specifications Max Draw Tube Thread
M68x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
140mm
Specifications Weight
17.58 lb | 7.97 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
