CB-NB Pull Back Collet Chuck
CB-NB Pull Back Collet Chuck
SKU:QUI-6de392
Maximize clamping efficiency with the CB-NB Pull Back Collet Chuck for precise machining applications. Low profile design, high accuracy, and long-lasting performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chuck
$299.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chuck
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chuck features a Pull Back design that optimizes clamping efficiency by directing forces towards the spindle, ensuring high accuracy and superior rigidity. With a low profile OD and radial adjusting screws for precision, this chuck offers increased tool clearance and maximum Z-axis utilization. Designed for minimal maintenance, all components are hardened and precision ground for long-lasting accuracy. With a Max. Clamping Diameter of 1.625 in | 42 mm and a Max. Clamp Force of 17,985 lbs | 80 kN, it delivers exceptional performance and reliability.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

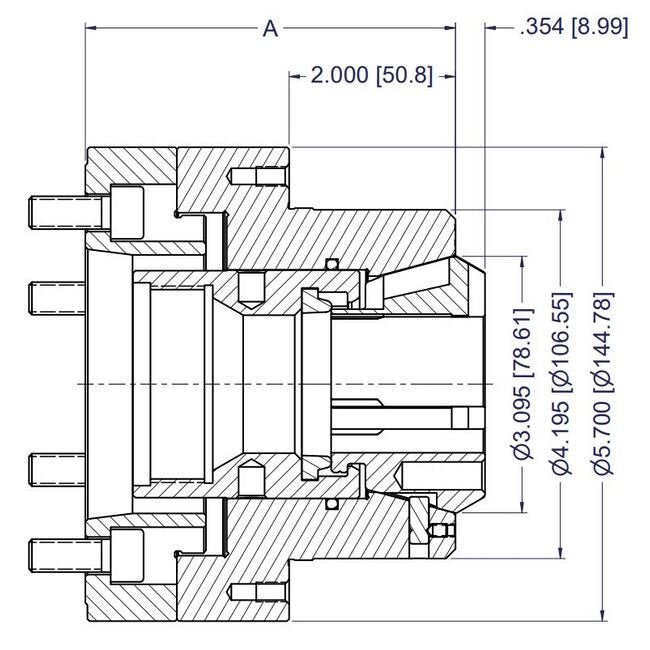

Specifications A Dimension
4.45 in | 113 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications Item No
15 042 171
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-5
Specifications Weight
16.7 lb | 7.6 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
