CB-NB Pull Back Collet Chuck
CB-NB Pull Back Collet Chuck
SKU:QUI-1968ce
Maximize clamping efficiency and accuracy with the CB-NB Pull Back Collet Chuck. Durable, precise, and maintenance-friendly design.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chuck
$1,199.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chuck
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chuck features a Pull Back design that optimizes clamping efficiency by concentrating forces towards the spindle, ensuring high accuracy and rigidity. With a low profile and short length, it offers increased tool clearance and maximizes Z-axis utilization. Radial adjusting screws enable precise chuck assembly alignment within .0002 inches. Hardened components and a lubricated-for-life design minimize maintenance needs, promoting longevity and accuracy. This collet chuck is engineered for maximum clamping force, precision, and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

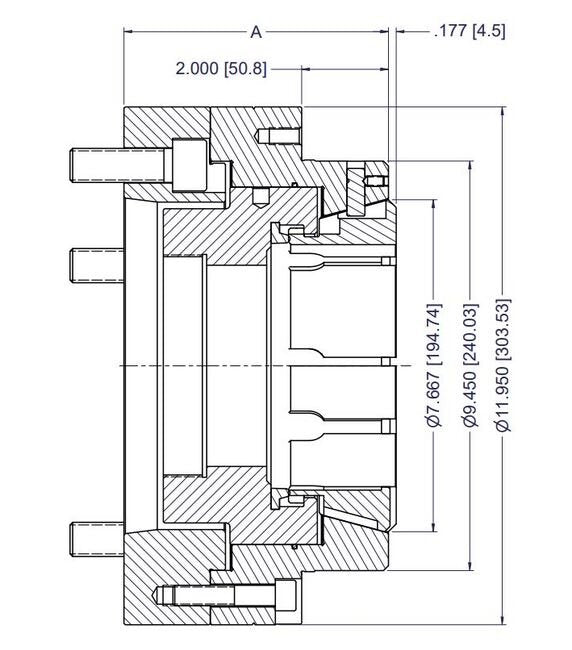

Specifications A Dimension
6.095 in | 104.01 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK140BZI
Specifications Item No
15 140 203
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
5.591 in | 142 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
89.1 lb | 40.5 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
