The CB-NB Pull Back Collet Chuck features a Pull Back design that enhances clamping efficiency, maximizing accuracy and rigidity. With radial adjusting screws for precision alignment within .0002``, this chuck ensures the highest accuracy and durability. Its low profile and short length provide increased tool clearance and optimal Z-axis utilization. Lubricated for life and hardened components guarantee minimal maintenance and long-term performance.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

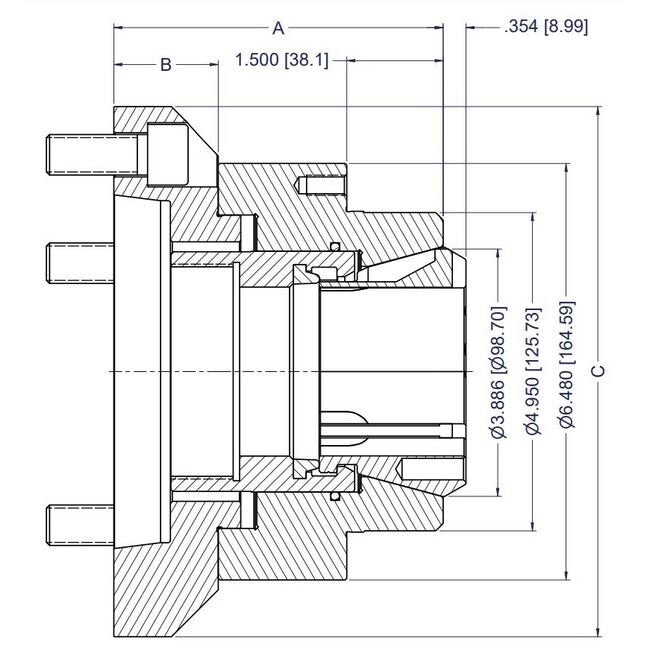

Specifications A Dimension
5.125 in | 13.18 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications C Dimension
9.25 in | 234.95 mm
Specifications Item No
15 065 306
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M100x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
39.44 lb | 17.89 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
