CB-NB Pull Back Collet Chucks
CB-NB Pull Back Collet Chucks
SKU:QUI-486e02
Maximize clamping force with CB-NB Pull Back Collet Chucks for ultimate precision and rigidity. Low maintenance, high accuracy design.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chucks
$1,399.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chucks
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chucks feature a Pull Back design that enhances clamping efficiency, translating draw tube force into maximum clamping force for high precision. With a low profile OD and radial adjusting screws, these chucks offer increased tool clearance and chuck assembly precision within .0002". Constructed with hardened components, lubricated for life, and designed for minimal maintenance, these chucks prioritize accuracy and longevity.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

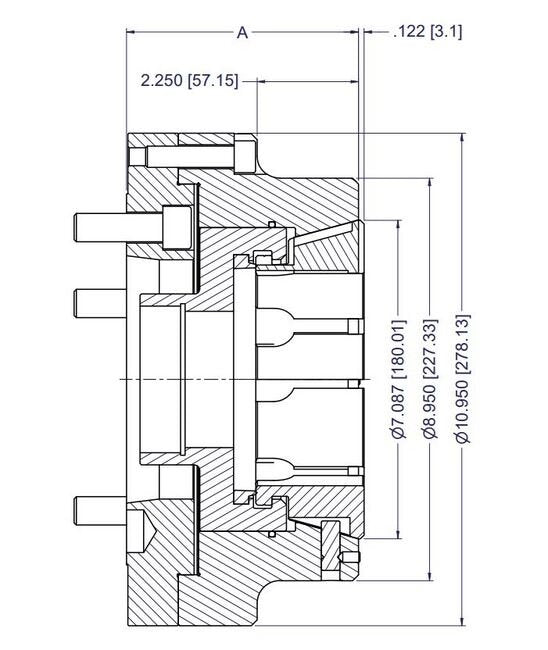

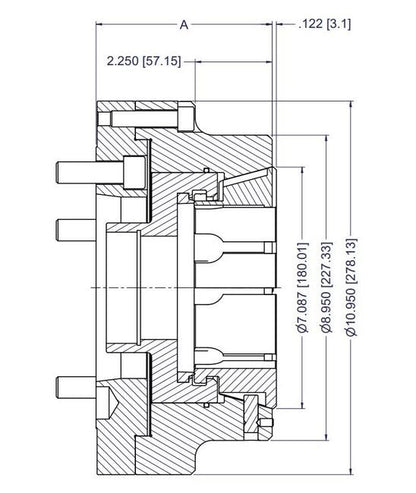

Specifications A Dimension
5.15 in | 130.81 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications Item No
15 120 200
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
88.28 lb | 40.04 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
