CB-NB Pull Back Collet Chucks
CB-NB Pull Back Collet Chucks
SKU:QUI-a79079
Maximize precision and rigidity with CB-NB Pull Back Collet Chucks. Efficient force translation, low profile, and maximum tool clearance provide superior performance.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
CB-NB Pull Back Collet Chucks
$1,199.99
Quantity: 1
Claim Your Seller Account
CB-NB Pull Back Collet Chucks
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-NB Pull Back Collet Chucks feature a cutting-edge design that ensures optimal clamping force translation for maximum precision and rigidity. With a Pull Back design concentrating forces towards the spindle, these chucks promote high accuracy. The low profile and radial adjusting screws allow for easy maintenance and fine-tuning. Hardened and ground components guarantee durability and accuracy, meeting the highest industry standards.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

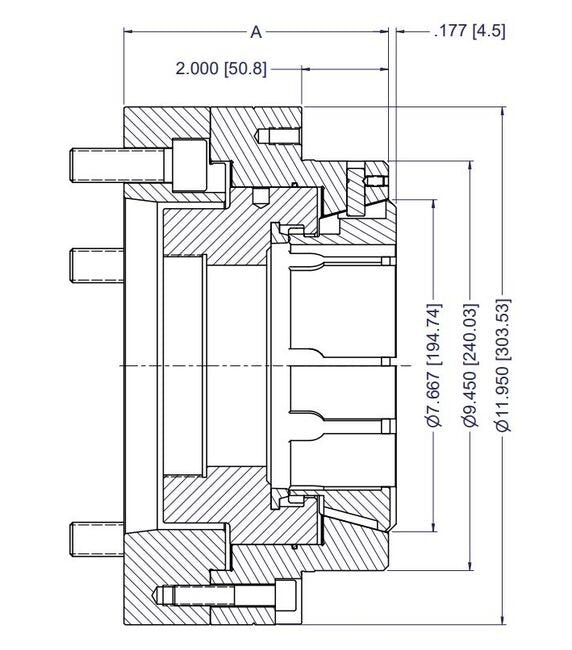

Specifications A Dimension
5.605 in | 142.37 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK140BZI
Specifications Item No
15 140 202
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
5.591 in | 142 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
113.28 lb | 51.37 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
