CB-ND Collet Chucks - Dead Length Design for Large Collet Sizes
CB-ND Collet Chucks - Dead Length Design for Large Collet Sizes
SKU:QUI-a07452
Precision CB-ND Collet Chucks for large collet sizes, featuring dead length design & high accuracy. Perfect for industrial applications.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
CB-ND Collet Chucks - Dead Length Design for Large Collet Sizes
$1,399.99
Quantity: 1
Claim Your Seller Account
CB-ND Collet Chucks - Dead Length Design for Large Collet Sizes
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Collet Chucks with Dead Length Design are engineered for collet sizes 120mm and larger, ensuring precise clamping without any pull back effect on the workpiece. The radial adjusting screws enable chuck assembly truing within .0002'' accuracy. With a lubricated-for-life design and all components hardened for longevity, these chucks offer top-tier accuracy and minimal maintenance. Additionally, the integration of stop plates and housings allows for versatile chucking applications that require end stops or part ejectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

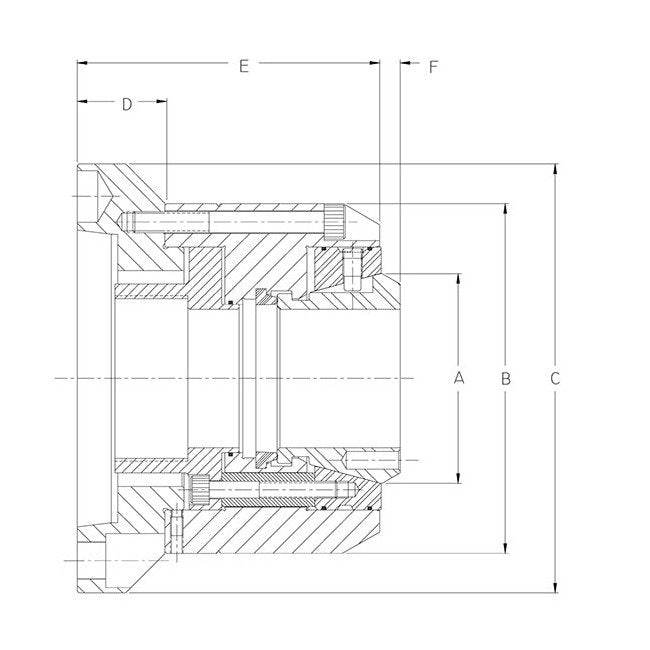

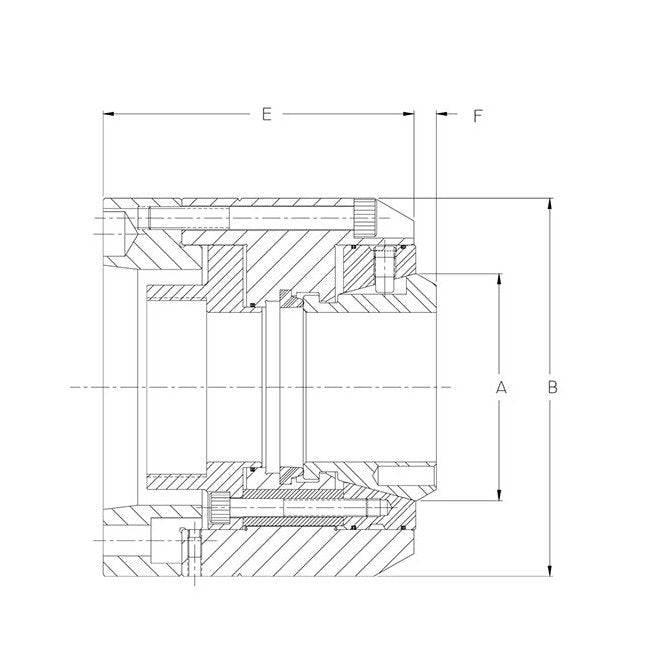

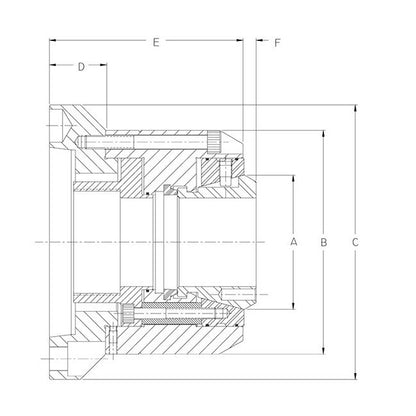

Specifications Accuracy
.0008 in | .020 mm
Specifications A Dimension
3.095 in | 78.6 mm
Specifications B Dimension
5.700 in | 144.8 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications C Dimension
6.480 in | 164.6 mm
Specifications D Dimension
1.000 in | 25.4 mm
Specifications E Dimension
4.511 in | 114.6 mm
Specifications F Dimension
.354 in | 9 mm
Specifications Item No
14 042 152
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M75x2*
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-6
Specifications Weight
25.8 lb | 11.7 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
