Precision CB-ND Collet Chucks with Dead Length design for accurate and durable chucking applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
CB-ND Collet Chucks - Dead Length Design | SK160BZI
$2,599.99
Quantity: 1
Claim Your Seller Account
CB-ND Collet Chucks - Dead Length Design | SK160BZI
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Collet Chucks with Dead Length design, featuring a fixed collet in the Z axis during clamping, eliminates the pull back effect on bar stock or workpieces. With radial adjusting screws for precision within .0002”, a lubricated-for-life design, and all components hardened for durability, this chuck ensures high accuracy and longevity. The integrated stop plates and housings support various chucking applications, making it a versatile choice for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

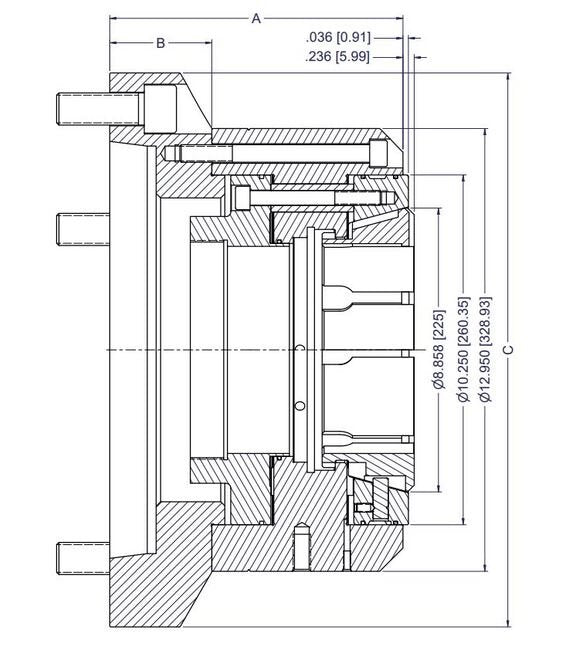

Specifications A Dimension
8.115 in | 206.12 mm
Specifications B Dimension
2.75 in | 69.85 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK160BZI
Specifications C Dimension
14.95 in | 379.73 mm
Specifications Item No
15 160 102
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
6.300 in | 160 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
3,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-15
Specifications Weight
211.27 lb | 95.81 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
