CB-ND Dead Length Collet Chuck
CB-ND Dead Length Collet Chuck
SKU:QUI-54bbd8
Maximize precision and efficiency with the CB-ND Dead Length Collet Chuck. Ideal for heavy-duty industrial applications with its Dead Length design and radial adjusting screws for unmatched accuracy.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chuck
$1,499.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chuck
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining precision with the CB-ND Dead Length Collet Chuck. Designed for collet sizes 120mm and larger, this chuck features a Dead Length design with radial adjusting screws for utmost accuracy within .0002 inches. With a lubricated-for-life design, minimal maintenance is required, making it ideal for heavy-duty industrial applications. The hardened and precision-ground components ensure durability and longevity, while the ability to mount stop plates and housings inside the chuck body enhances versatility for various chucking applications. Maximize your productivity with the high accuracy and reliability of the CB-ND Dead Length Collet Chuck.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

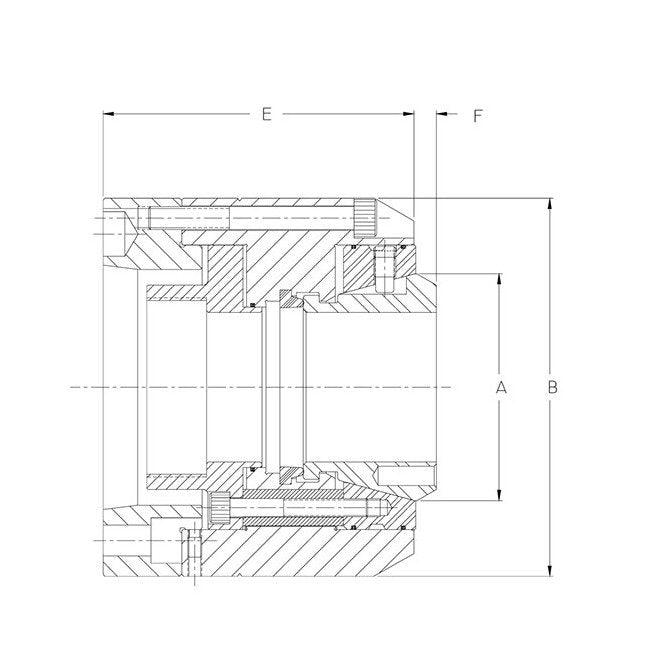

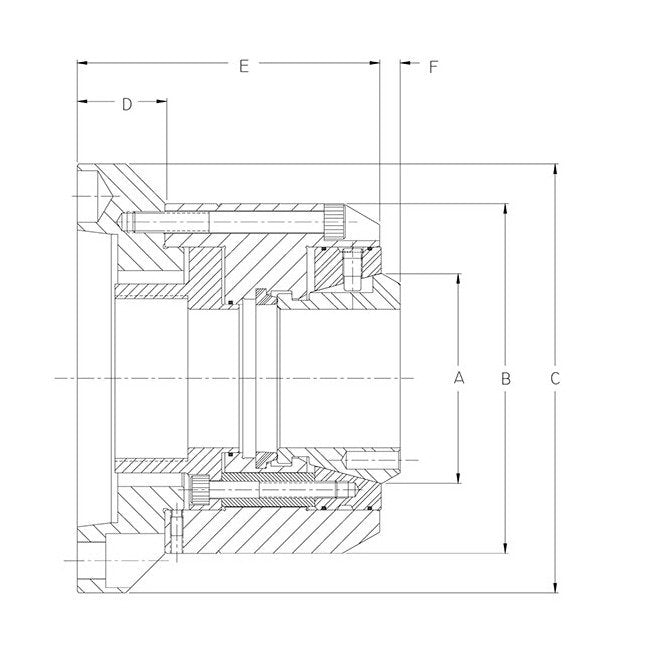

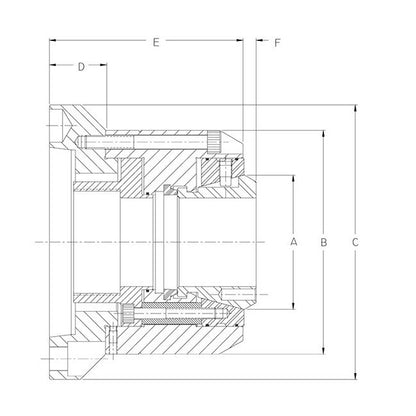

Specifications A Dimension
3.886 in | 98.7 mm
Specifications B Dimension
6.480 in | 164.6 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications C Dimension
8.250 in | 209.6 mm
Specifications D Dimension
1.625 in | 41.3 mm
Specifications E Dimension
5.605 in | 142.4 mm
Specifications F Dimension
.354 in | 9 mm
Specifications Item No
15 065 152
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M80x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
42 lb | 19 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
