The CB-ND Dead Length Collet Chuck is specifically designed for precision machining applications, featuring a Dead Length design that eliminates any pull back effect on the workpiece. With radial adjusting screws for fine tuning within .0002â (0.005mm) and a lubricated-for-life design, maintenance is minimal. Hardened and precision ground components ensure the highest accuracy and durability. Equipped with stop plates and housings, it's ideal for applications requiring end stops or part ejectors. Maximize clamping efficiency with the CB-ND Dead Length Collet Chuck.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

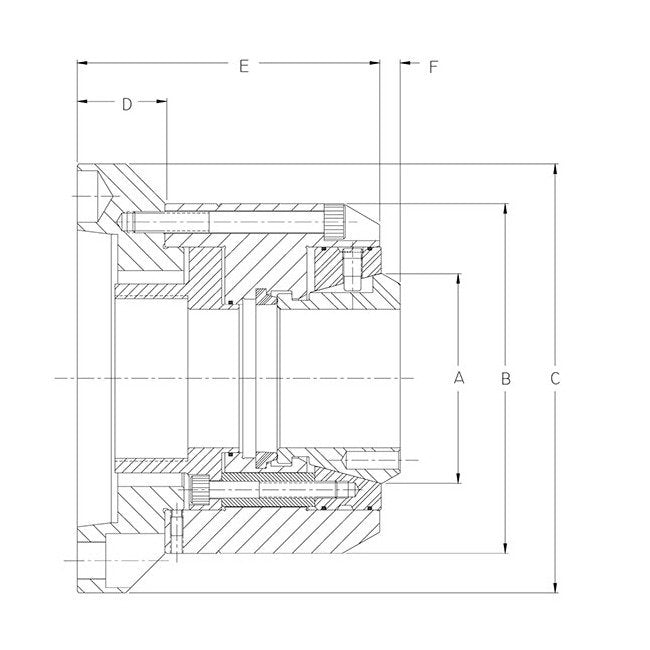

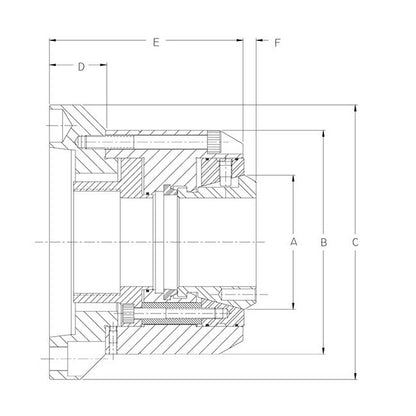

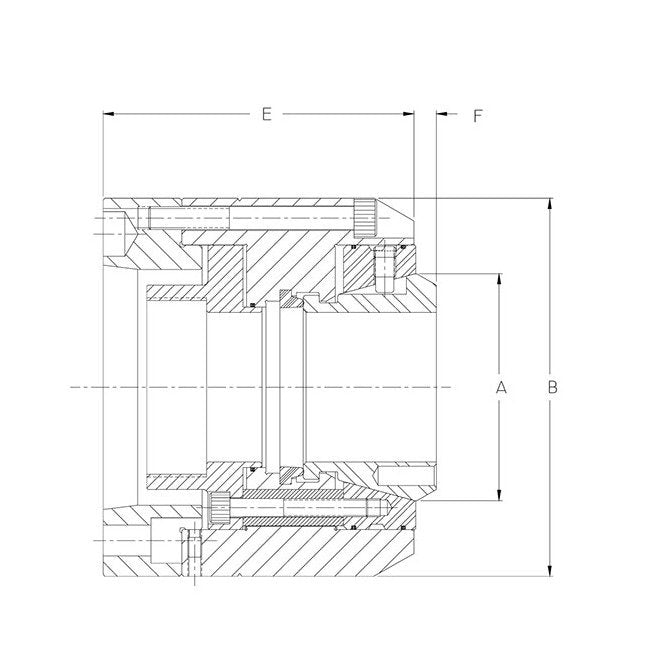

Specifications A Dimension
3.886 in | 98.7 mm
Specifications B Dimension
6.480 in | 164.6 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications E Dimension
5.330 in | 135.4 mm
Specifications F Dimension
.354 in | 9 mm
Specifications Item No
15 065 151
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
35.5 lb | 16.1 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
