CB-ND Dead Length Collet Chuck
CB-ND Dead Length Collet Chuck
SKU:QUI-0a1302
Enhance precision and durability with the CB-ND Dead Length Collet Chuck for collet sizes 120mm and up. Perfect for minimizing pull-back effects and ensuring high accuracy.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chuck
$1,299.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chuck
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Dead Length Collet Chuck is designed for collet sizes 120mm and larger, ensuring secure clamping without causing a pull-back effect. Featuring a Dead Length design and radial adjusting screws for precise assembly within .0002â (0.005mm), this chuck offers high accuracy and minimal maintenance. With all components hardened and precision ground, it guarantees long-term durability. Additionally, the chuck accommodates stop plates and housings for specialized applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

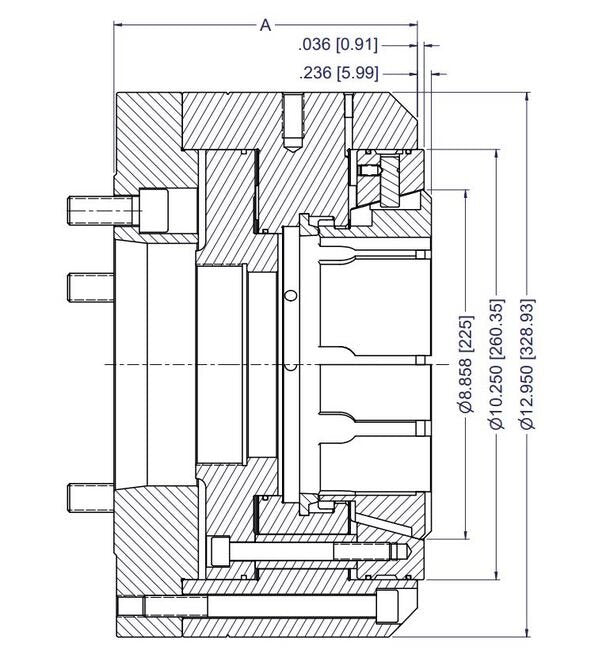

Specifications A Dimension
7.365 in | 187.07 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK160BZI
Specifications Item No
15 160 101
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
6.300 in | 160 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
3,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
197.65 lb | 89.64 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
