The CB-ND Dead Length Collet Chucks are designed for collet sizes 120mm and larger, featuring a Dead Length design that eliminates pullback effect on workpieces. Precision-engineered with radial adjusting screws for chuck assembly accuracy within .0002 inches, these chucks are lubricated-for-life, reducing maintenance needs. With hardened components for durability and high accuracy, this chuck also allows mounting of stop plates and housings inside for specialized applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

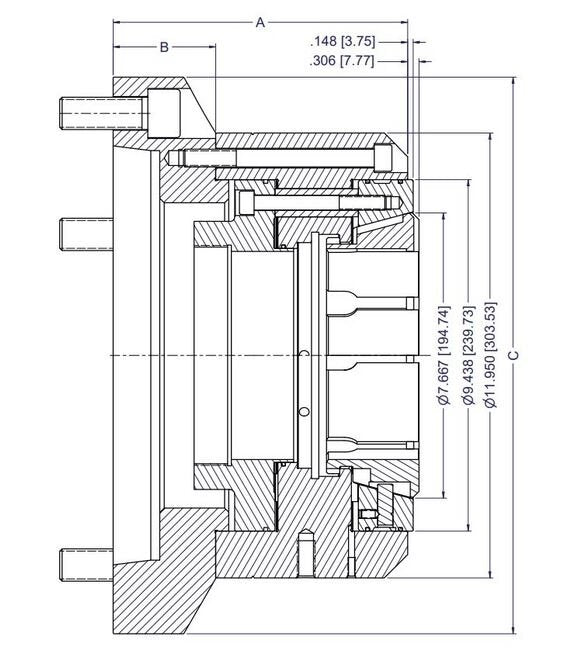

Specifications A Dimension
7.898 in | 200.61 mm
Specifications B Dimension
2.75 in | 69.85 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK140BZI
Specifications C Dimension
14.95 in | 379.73 mm
Specifications Item No
15 140 101
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
5.591 in | 142 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-15
Specifications Weight
190.45 lb | 86.37 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
