Precision-engineered CB-ND Dead Length Collet Chucks for high accuracy clamping without pull back effect, with radial adjusting screws and hardened components.
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chucks
$1,299.00
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chucks
$1,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Dead Length Collet Chucks are designed for collet sizes 120mm and larger, featuring a dead-length design that eliminates pull back effect on workpieces. With radial adjusting screws for precision within .0002", these chucks offer long-term accuracy and minimal maintenance. Hardened components ensure durability, while stop plates allow for versatile chucking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

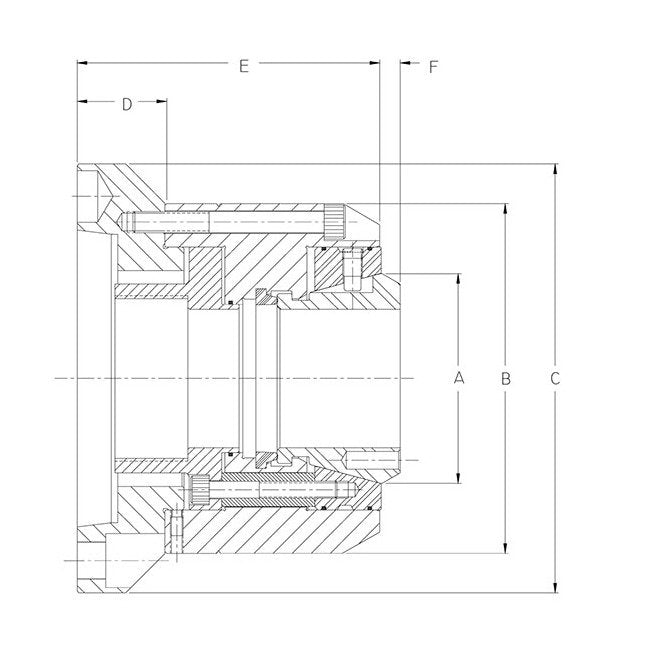

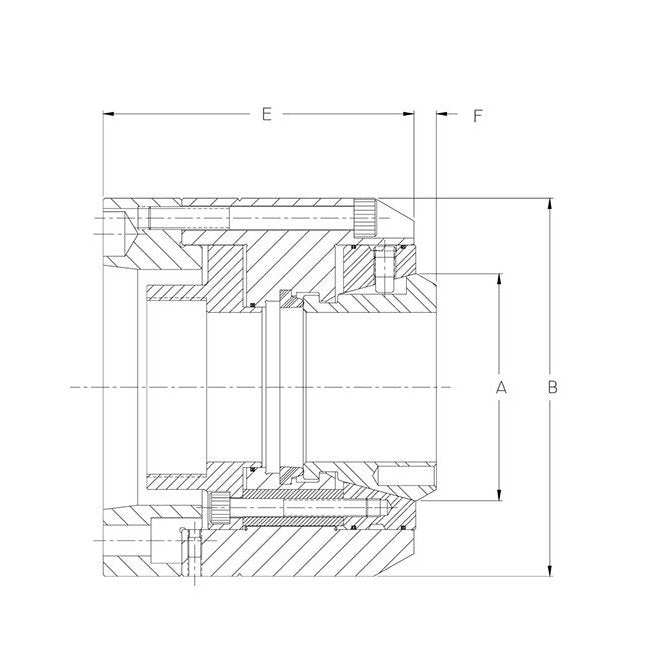

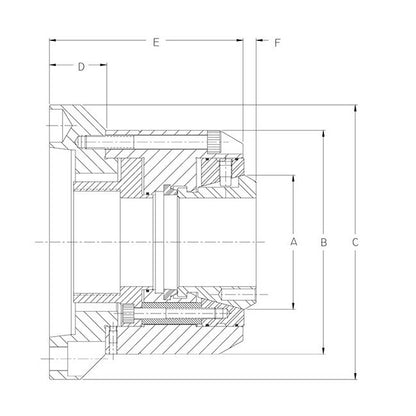

Specifications A Dimension
3.886 in | 98.7 mm
Specifications B Dimension
6.480 in | 164.6 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications E Dimension
4.780 in | 121.4 mm
Specifications F Dimension
.354 in | 9 mm
Specifications Item No
15 065 150
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Weight
33.7 lb | 15.3 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
