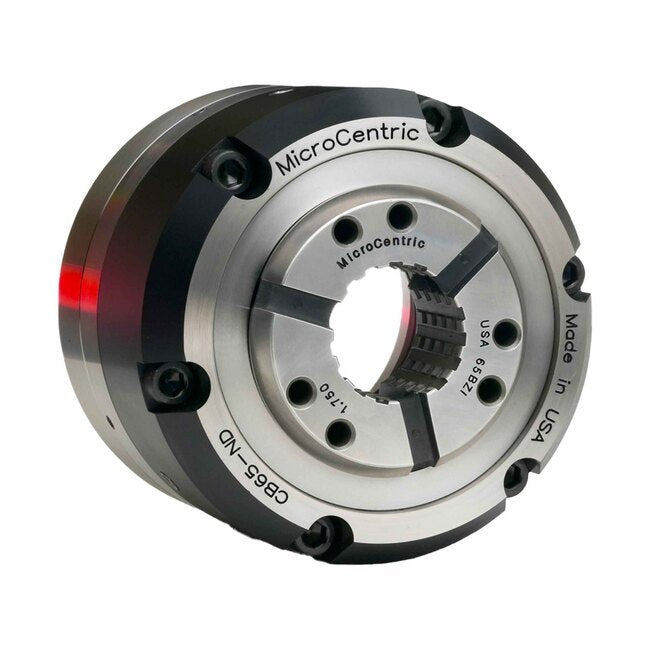

CB-ND Dead-Length Collet Chucks
CB-ND Dead-Length Collet Chucks
SKU:QUI-331ad1
Experience precision and durability with our CB-ND Dead-Length Collet Chucks. Radial adjusting screws for accuracy, minimal maintenance, and hardened components for longevity.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
CB-ND Dead-Length Collet Chucks
$1,299.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead-Length Collet Chucks
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Dead-Length Collet Chucks feature a precision Dead-Length design that ensures the collet remains fixed during clamping, eliminating any pull back effect. With radial adjusting screws for precise truing within .0002â (0.005mm), these chucks offer exceptional accuracy and minimal maintenance. Hardened and ground components guarantee longevity and high accuracy, while the ability to mount stop plates and housings inside the chuck body adds versatility for various chucking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

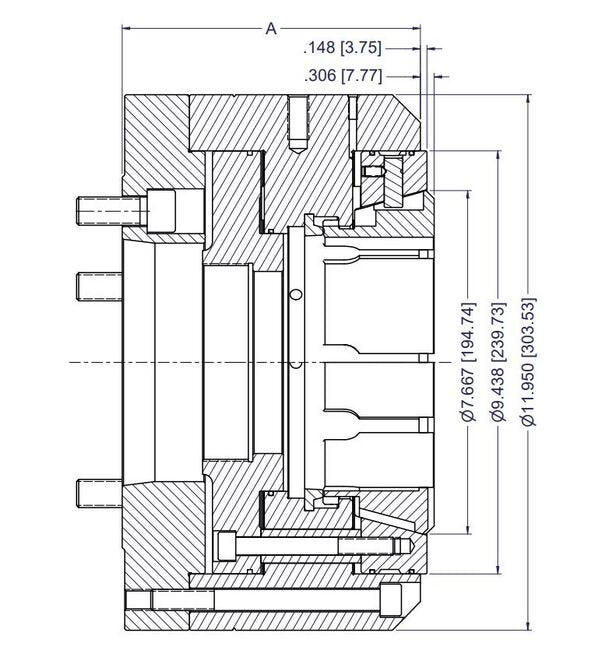

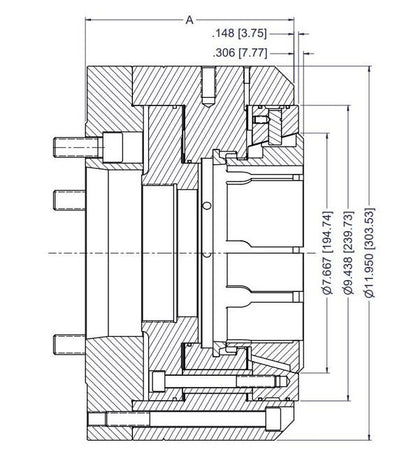

Specifications A Dimension
7.138 in | 181.31 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK140BZI
Specifications Item No
15 140 100
Specifications Linear Chuck Stroke
.315 in | 8 mm
Specifications Max Clamping Diameter
5.591 in | 142 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
157.53 lb | 71.44 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
