CB-ND Dead Length Collet Chucks
CB-ND Dead Length Collet Chucks
SKU:QUI-c8359d
Precision CB-ND Dead Length Collet Chucks with radial adjusting screws for unmatched accuracy and minimal maintenance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chucks
$899.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chucks
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Dead Length Collet Chucks are designed for precision clamping of collet sizes 120mm and larger. Featuring a Dead Length design, these chucks ensure the collet remains fixed during clamping, eliminating pull back effects. With radial adjusting screws for precise alignment within .0002”, these chucks offer exceptional accuracy. The lubricated-for-life design reduces maintenance needs, while hardened components ensure durability. Additionally, the option to mount stop plates inside the chuck body enhances versatility for various chucking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

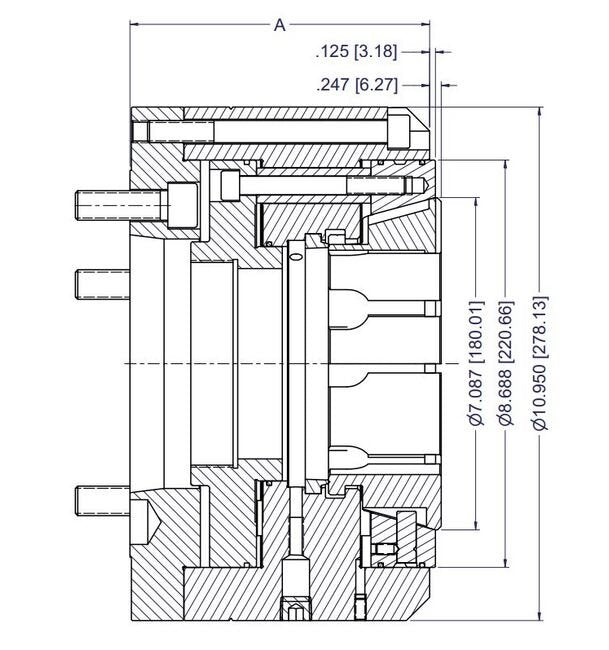

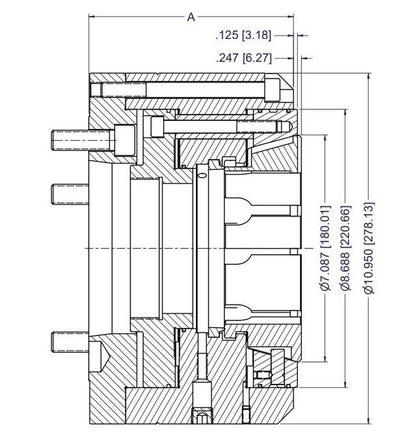

Specifications A Dimension
6.385 in | 162.18 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications Item No
15 120 152
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-6
Specifications Weight
136.93 lb | 62.1 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
