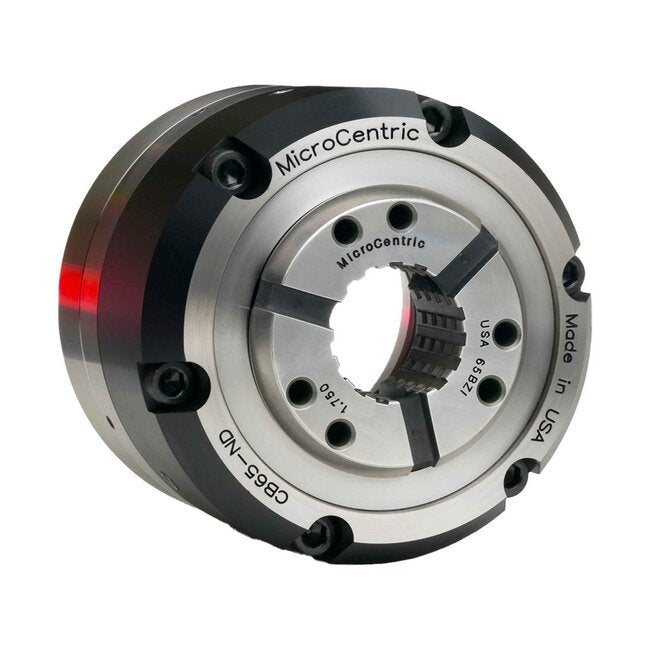

CB-ND Dead Length Collet Chucks
CB-ND Dead Length Collet Chucks
SKU:QUI-3e04bc
Experience precision and durability with CB-ND Dead Length Collet Chucks, offering minimal maintenance and optimal accuracy for institutional needs.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chucks
$499.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chucks
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Dead Length Collet Chucks feature a precise Dead Length design that ensures the collet remains fixed during clamping, eliminating any pull-back effect. With radial adjusting screws for chuck assembly alignment within .0002", minimal maintenance lubrication, and hardened precision components, these chucks offer exceptional accuracy and durability. Additionally, the inclusion of stop plates and stop housings inside the chuck body allows for customizable chucking applications, making them ideal for institutions and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

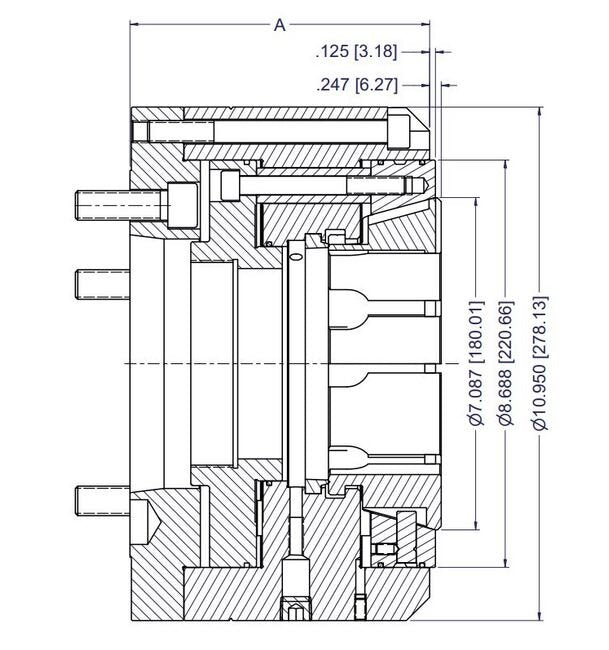

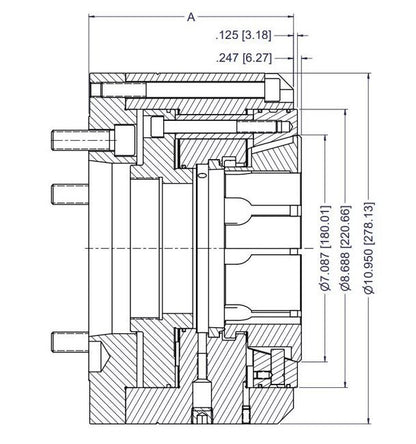

Specifications A Dimension
7.885 in | 200.28 mm
Specifications B Dimension
2.65 in | 67.31 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications C Dimension
14.95 in | 379.73 mm
Specifications Item No
15 120 153
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-15
Specifications Weight
171.68 lb | 77.86 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
