CB-ND Dead Length Collet Chucks
CB-ND Dead Length Collet Chucks
SKU:QUI-097bf4
Precision Dead Length design, radial adjusting screws, lubricated-for-life, high accuracy chucks for collet sizes 120mm+, with stop plates for versatile applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chucks
$899.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chucks
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CB-ND Dead Length Collet Chucks feature a precision Dead Length design that ensures the collet remains fixed during clamping, preventing any pull back effect. With radial adjusting screws for precise truing, lubricated-for-life design, and all components hardened for accuracy and durability, these chucks offer reliable performance. Additionally, they come equipped with stop plates and housings for versatile chucking applications. Ideal for collet sizes of 120mm and larger, these chucks ensure high accuracy and minimal maintenance for extended service life.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

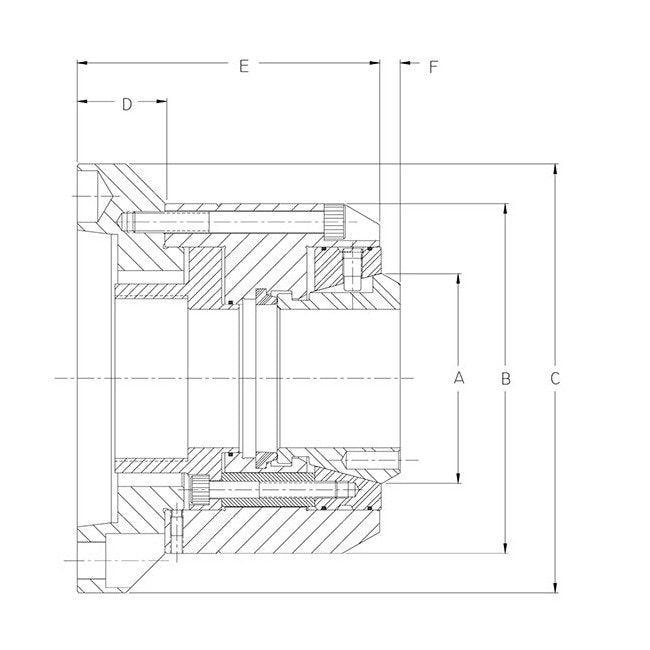

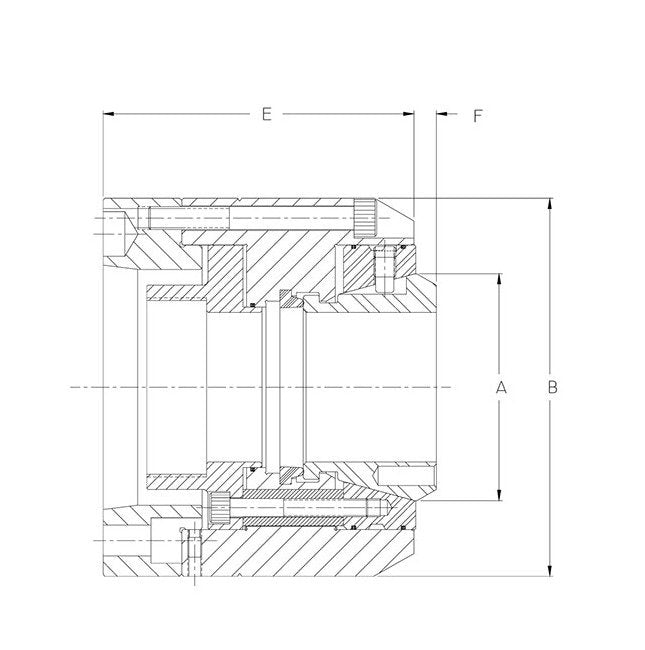

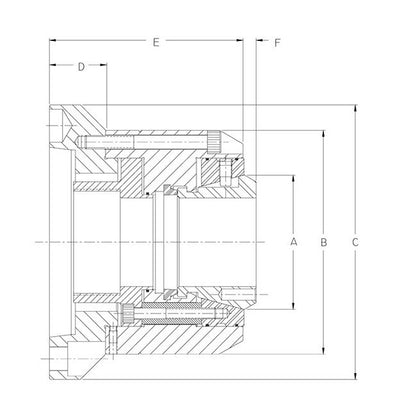

Specifications A Dimension
3.095 in | 78.6 mm
Specifications B Dimension
5.700 in | 144.8 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications E Dimension
4.611 in | 117.1 mm
Specifications F Dimension
.354 in | 9 mm
Specifications Item No
15 042 151
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
A2-5
Specifications Weight
25.8 lb | 11.7 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
