CB-ND Dead Length Collet Chucks for Precision Clamping
CB-ND Dead Length Collet Chucks for Precision Clamping
SKU:QUI-c18dad
Achieve precise clamping with our CB-ND Dead Length Collet Chucks. Radial screws for accuracy, minimal maintenance, and long-lasting performance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
CB-ND Dead Length Collet Chucks for Precision Clamping
$1,299.99
Quantity: 1
Claim Your Seller Account
CB-ND Dead Length Collet Chucks for Precision Clamping
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining accuracy with our CB-ND Dead Length Collet Chucks. Designed for collet sizes of 120mm and larger, our chucks feature a Dead Length design that ensures the collet remains fixed during clamping, eliminating pull back effects. With radial adjusting screws for precise assembly, lubricated-for-life design for minimal maintenance, hardened components for accuracy, and the ability to mount stop plates internally, these chucks offer unmatched performance and durability. Maximize your productivity with our CB-ND Collet Chucks.
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

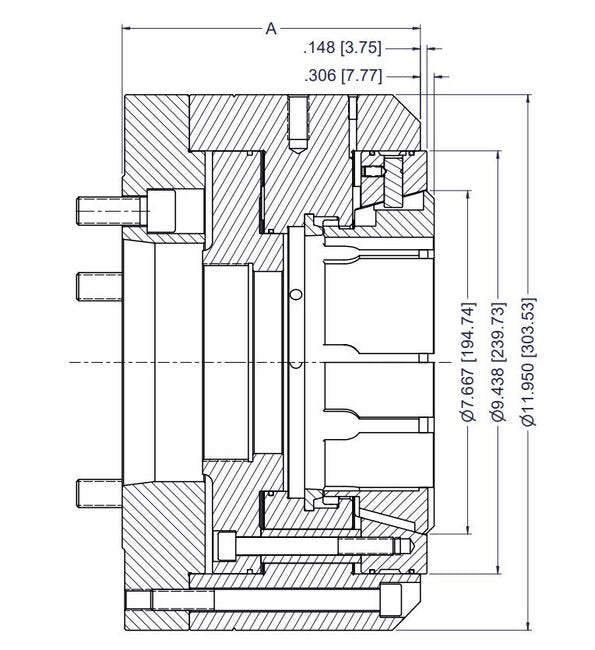

Specifications A Dimension
6.648 in | 168.86 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK140BZI
Specifications Item No
15 140 102
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
5.591 in | 142 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
159.43 lb | 72.3 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
