The CB-ND Dead Length Collet Chucks are engineered for precision machining tasks, ideal for collet sizes 120mm and above. Featuring a Dead Length design, these chucks ensure the collet remains fixed during clamping, eliminating any pull-back effect on the workpiece. With radial adjusting screws for precise alignment within .0002â, lubricated-for-life design, and all components hardened for longevity, these chucks offer top-notch accuracy and minimal maintenance requirements. Additionally, the ability to mount stop plates and stop housings inside the chuck body enhances versatility for varied chucking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

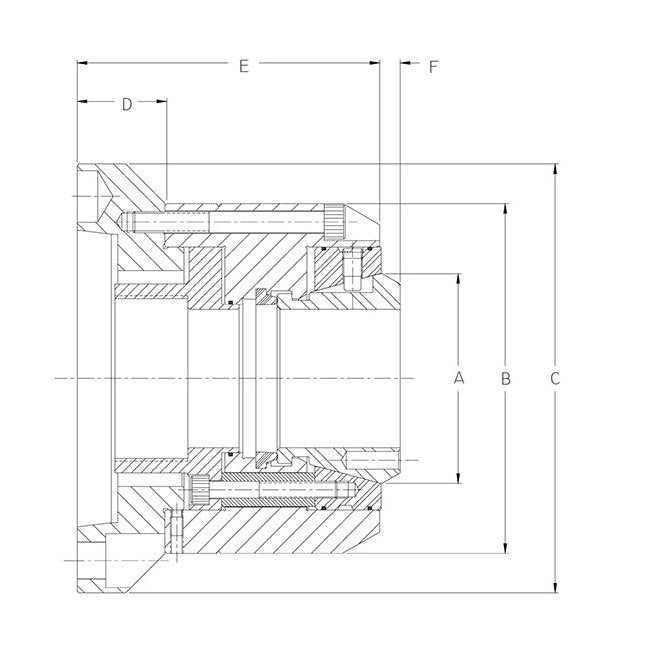

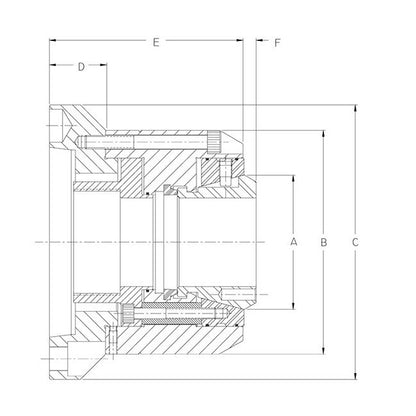

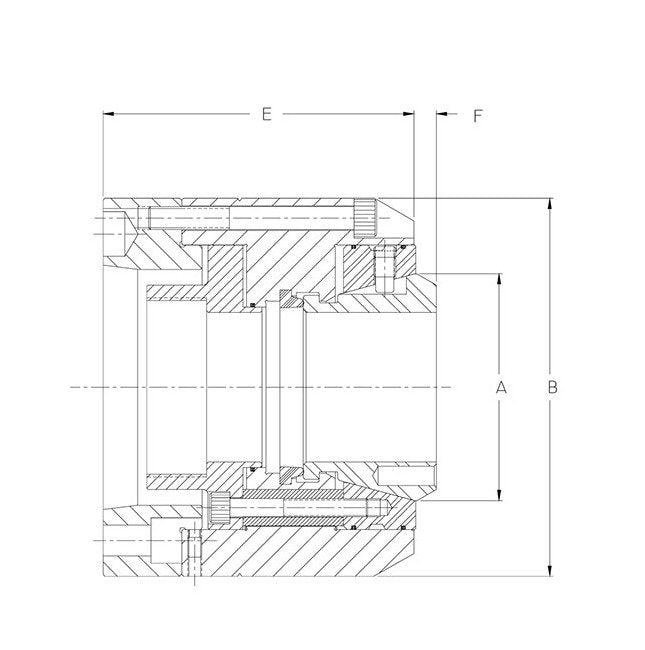

Specifications Accuracy
.0008 in | .020 mm
Specifications A Dimension
3.095 in | 78.6 mm
Specifications B Dimension
5.700 in | 144.8 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK42BZI
Specifications E Dimension
4.214 in | 107 mm
Specifications F Dimension
.354 in | 9 mm
Specifications Item No
15 042 153
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
1.625 in | 42 mm
Specifications Max Clamp Force
17,985 lbs | 80 kN
Specifications Max Draw Tube Thread
M60x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.156 in | 4 mm
Specifications Spindle Nose
140mm
Specifications Weight
24.7 lb | 11.2 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
