Patented CB-NDR Collet Chucks with pull-to-close dead length design for precise clamping and high accuracy in servo stop bar loaders.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
CB-NDR Collet Chucks - Dead Length Design for Servo Stop Bar Loaders
$499.99
Quantity: 1
Claim Your Seller Account
CB-NDR Collet Chucks - Dead Length Design for Servo Stop Bar Loaders
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

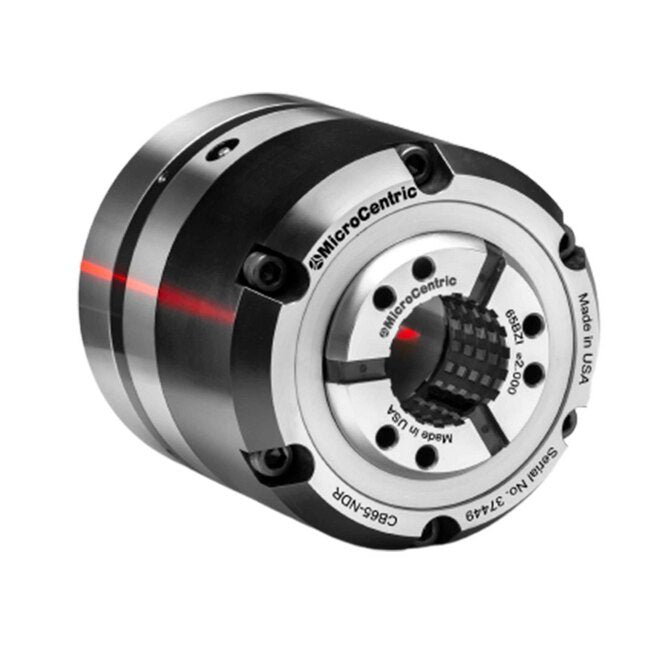

The CB-NDR Collet Chuck features a patented pull-to-close dead length design, ensuring precise clamping without pull back, avoiding bar displacement off the servo stop. With radial adjusting screws for chuck assembly alignment within .0002", lubricated-for-life, and all components hardened for exceptional accuracy and durability, this chuck delivers reliable performance. Designed for spindle nose A2-8 and offering a max clamping diameter of 2.625 inches, the CB-NDR provides a max clamp force of 23,605 lbs and operates at speeds up to 6,000 rpm, making it ideal for high-precision machining applications.
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

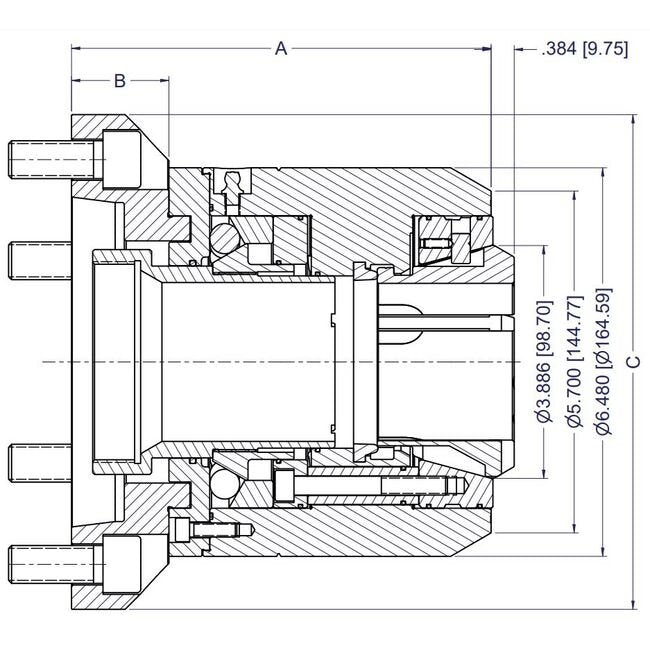

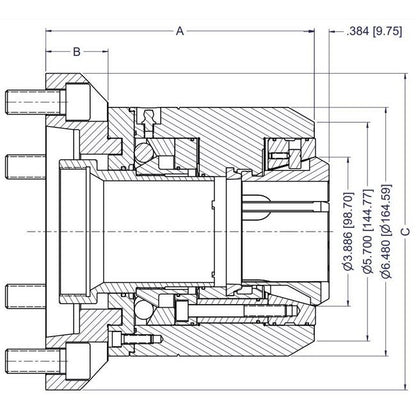

Specifications A Dimension
7 in | 177.8 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications C Dimension
8.250 in | 209.6 mm
Specifications Item No
15 080 303
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Weight
52.12 lb | 23.64 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
