CB-NDR Dead Length Collet Chucks for Servo Stop Bar Loaders
CB-NDR Dead Length Collet Chucks for Servo Stop Bar Loaders
SKU:QUI-9dc387
Patented Pull to Close Dead Length Collet Chucks for servo stop bar loaders, providing unmatched security and precision.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
CB-NDR Dead Length Collet Chucks for Servo Stop Bar Loaders
$899.99
Quantity: 1
Claim Your Seller Account
CB-NDR Dead Length Collet Chucks for Servo Stop Bar Loaders
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

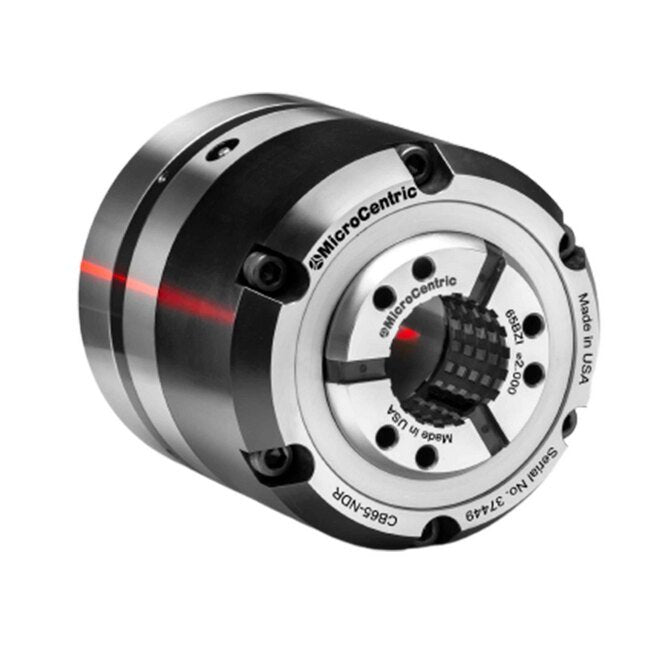

The CB-NDR Collet Chucks feature a patented Pull to Close Dead Length design specifically crafted for servo stop bar loaders. This design prevents the bar from being pushed off the servo stop with its actuation mechanism, ensuring secure clamping. Precision-engineered with radial adjusting screws for chuck assembly accuracy within .0002”, these chucks offer unparalleled reliability. With a lubricated-for-life design, minimal maintenance is required. Every component is hardened and precision ground for maximum accuracy and extended lifespan.
Product Specifications
Specifications Accuracy
.0008 in | 0.020 mm

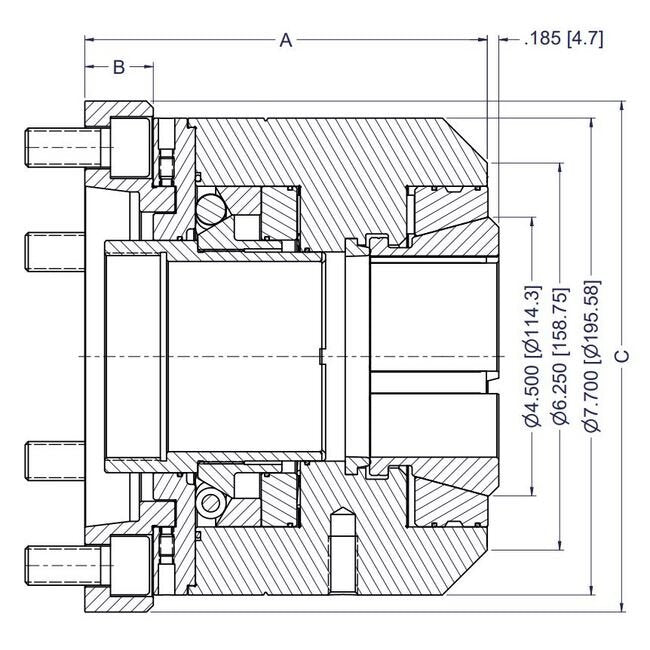

Specifications A Dimension
6.5 in | 165.1 mm
Specifications B Dimension
1.105 in | 28.07 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications C Dimension
8.250 in | 209.6 mm
Specifications Item No
15 080 301
Specifications Linear Chuck Stroke
.480 in | 12.2 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-8
Specifications Weight
57.8 lb | 26.2 kg
Standard Equipment 0
CB-NDR chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with purchase order.
